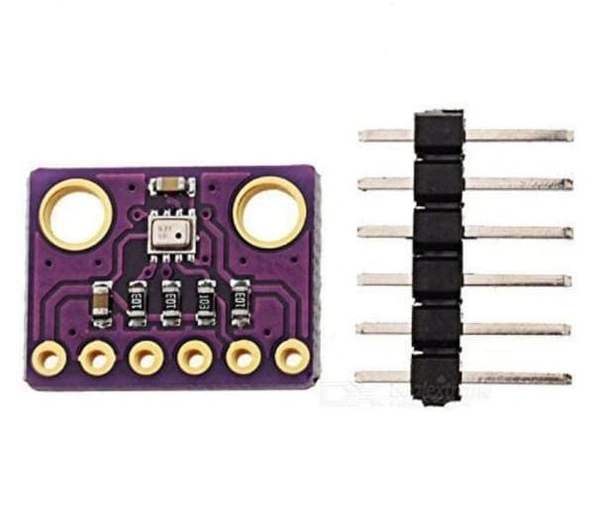

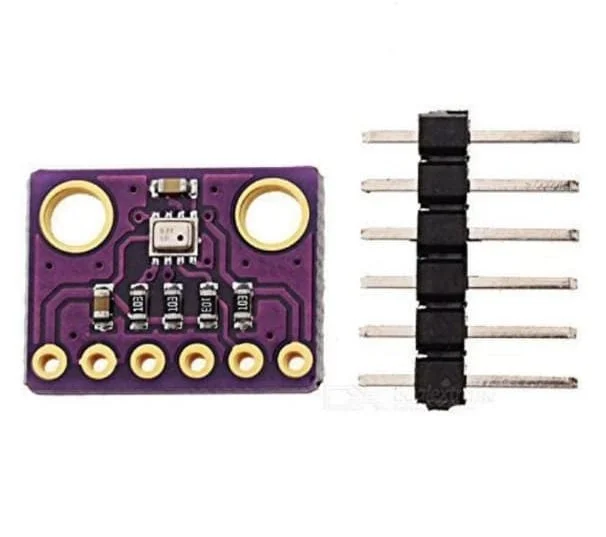

BMP280 Precision Barometric Pressure and Attitude Sensor Module
₹ 97 / Piece
Delivery Options
Get delivery at your doorstep
Product Details
- Module: GY-BMP280
- Chip: BMP280
- Pin pitch: 2-54mm
- Module size: 11.5 x 15mm
- Package contains: 1 x BMP280 barometric pressure sensor module
GY-BMP280 is a highly precise Environmental pressure sensor with attitude and temperature sensor. This is a breakout board or module of the Bosch BMP280 digital barometer and a next-generation up-gradation of BMP280/BMP085/BMP183. The sensor is the best solution for measuring barometric pressure up to �1 hPa absolute accuracy and temperature with �1 �C accuracy
The BMP280 module comes with a default I2C address of 0X76 but supports both I2C and SPI interface.
Features
This is the next generation up-gradation of BMP180/BMP083/BMP183
It is a precise barometric pressure sensor with a temperature sensor
Compatible with any controller processor and Arduino
Supports both I2C and SPI communication or interface
Specification
Power supply: 3V to 5V
Peak current: 1.12mA
Pressure accuracy: �1 hPa
Temperature accuracy: �1 �C
Communication or interface type: I2C and SPl
Air pressure range: 300 to 1100 hPa
Temperature range: -40�C to +85�C
