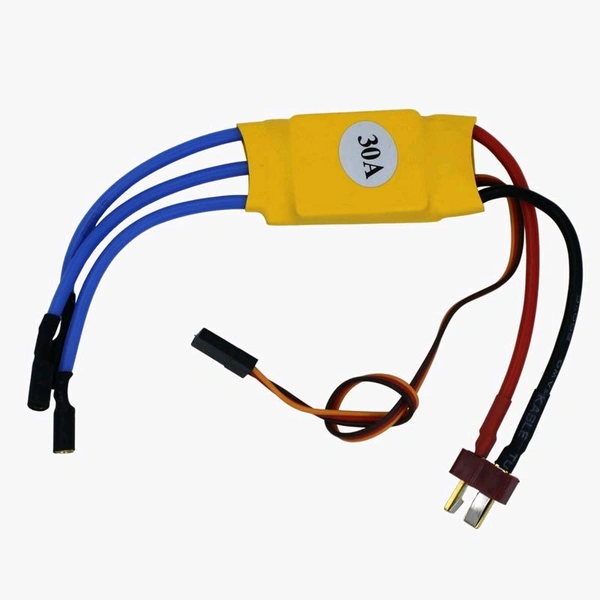

BLDC 30A ESC - Brushless DC Motor Electronic Speed Controller Q11 C4

Name: BLDC 30A ESC - Brushless DC Motor Electronic Speed Controller Q11 C4
SKU: SKU-6143
Price: 380 INR
Availability: InStock

₹ 380

₹ 450

16%

Delivery Options

Get delivery at your doorstep

Electronic Speed Controllers (ESC) are used in Quadcopters and other types of Drones to control the speed of BLDC Motor. This 30A ESC can be power with LiPo Batteries (2S-3S) and can drive BLDC motors like the A2212, with a maximum current of 30A. The ESC is commonly used with A2212 BLDC motors rated for 1000kv, 1400kv or 2200kv.

It also has BEC built-in which can provide regulated 5V with a maximum source current of 2A to power the flight controller and other modules.

Specifications:

Maximum current: 30A

Peak Current: 40A <10sec

BEC Voltage/Current: 5V/2A

Auto Cut-Off feature at 2.9V/cell

Dimensions: 45 x 24 x 9

Weight: 23g

Package Includes:

1 x BLDC 30A ESC - Brushless DC Motor Electronic Speed Controller
