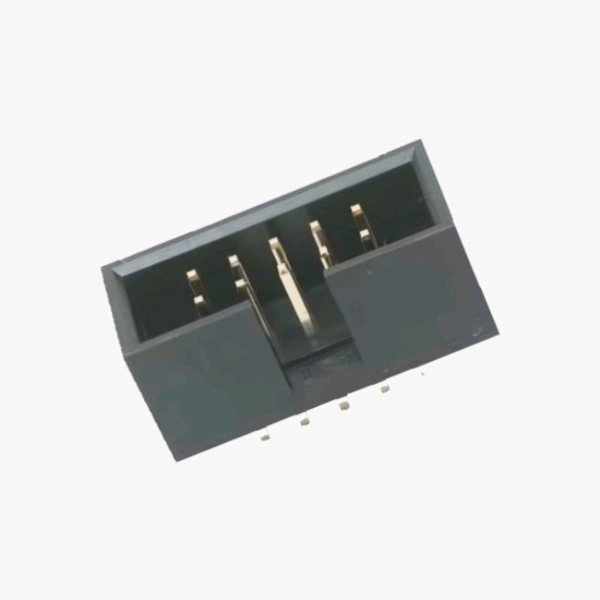

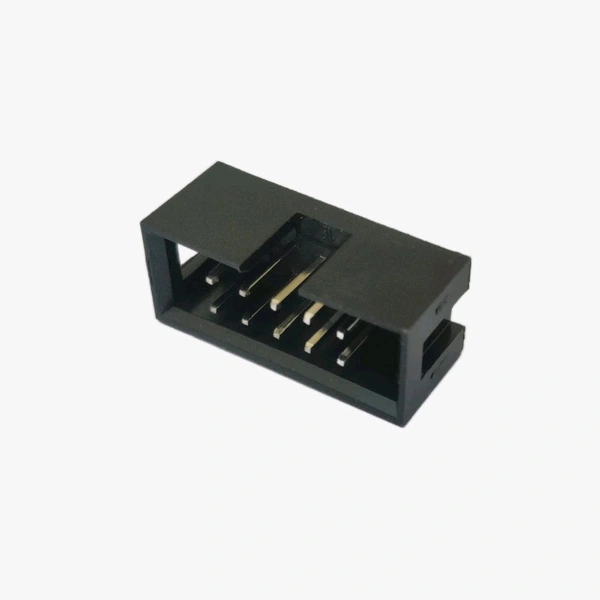

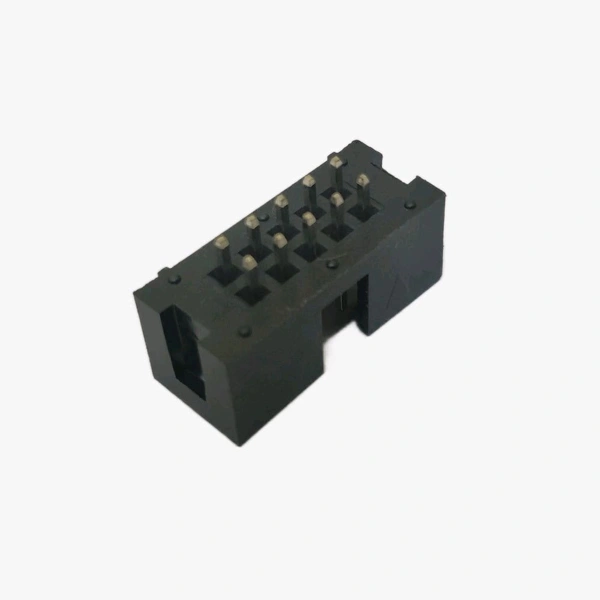

BHD 10 Pin 2.54mm Pitch Box Headers IDC Connector Q12 C9

The 10 Pin 2.54mm Pitch Box Headers - IDC Connector features a 2x5 male pin configuration with a 2.54mm pitch, ideal for reliable board-to-cable connections. Its dual-row design ensures secure mating with a 2.54mm row spacing. Perfect for various electronic applications requiring precise and durable interconnects.

Specifications:

Connector Type Header

Contact Type Male Pin

Pitch - Mating 0.100" (2.54mm)

Number of Positions 10

Number of Rows 2

Row Spacing - Mating 0.100" (2.54mm)

Insulation Material Polybutylene Terephthalate (PBT)

Operating Temperature -40°C to +105°C

Insulation Color Black

Current Rating (Amps) 5A

Voltage Rating 250V
