ATMEGA16A-PU Microcontroller Q2 C6

With the 16kB self-programming flash program memory it is powered by the 1024B SRAM and 512-byte EEPROM it has peripheral support of 8 channel 10-bit Analog to Digital converter. For debugging and Programming, it has a JTAG interface for on-chip-debug. It can operate from 2.7V to 5.5V operating voltages. Peripheral support includes SPI, Timer, USART.

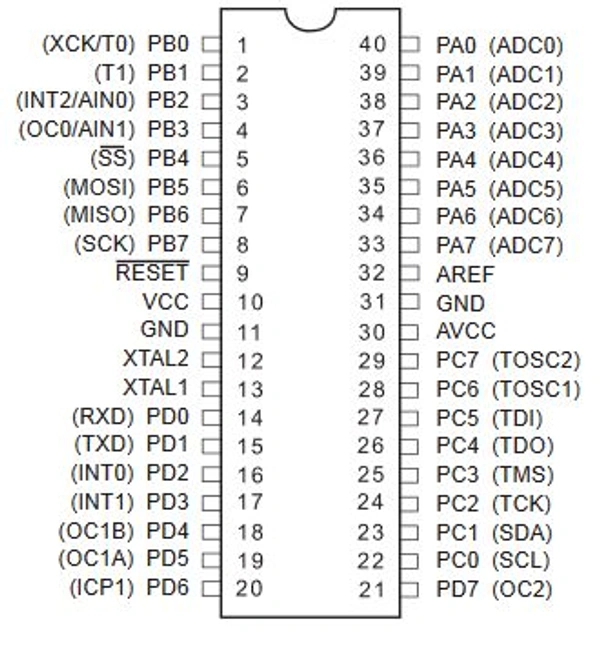

Atmega16a pinout:

ATMega16A Pinout



Atmega16 features, specification

Features: -

It has advanced RISC architecture

32 Programmable I/O Pins for with multiple operations

Internal Calibrated RC oscillator

Real-time counter that uses separate oscillator

Power-on reset (POR) and programmable brown-out detection

External and internal interrupt sources

Mode of operations - Idle, ADC noise reduction, power-save, power-down, standby and extended standby

Specification: -

Package/Case : PDIP-40

Minimum Supply Voltage (V) : 7V

Maximum Supply Voltage (V) : 5V

of Timers/Counters : 3 Timers

of I/Os : 32

Architecture : 8-bit Microcontrollers – MCU

Product Series : ATmega16A

Maximum Clock Frequency (MHz) : 16

Data Bus Width : 8 bit

Interface Supports : 2-Wire, SPI, USART

Mounting Type : Through Hole, DIP Package

Program Memory Size (kB) : 16

Data RAM size and Type : 1KB SRAM

Data ROM Size and Type : 512-B EEPROM

Operating Temperature Range (°C) :-24 to 85



Atmega16a Applications:

Data logging

Controlled Operations

Data processing and small applications where Input output single bit data transfer is required.

Sensor Integration

Computer and Microcontroller communications

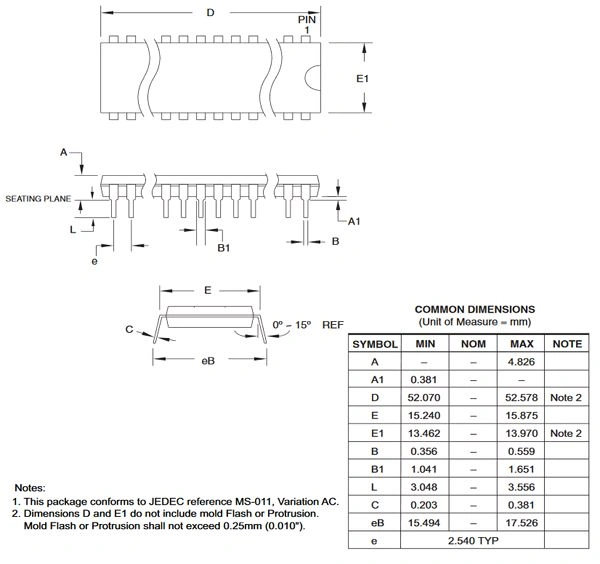

Atmega16a Dimension and footprint:

ATMega16A



Package Contains

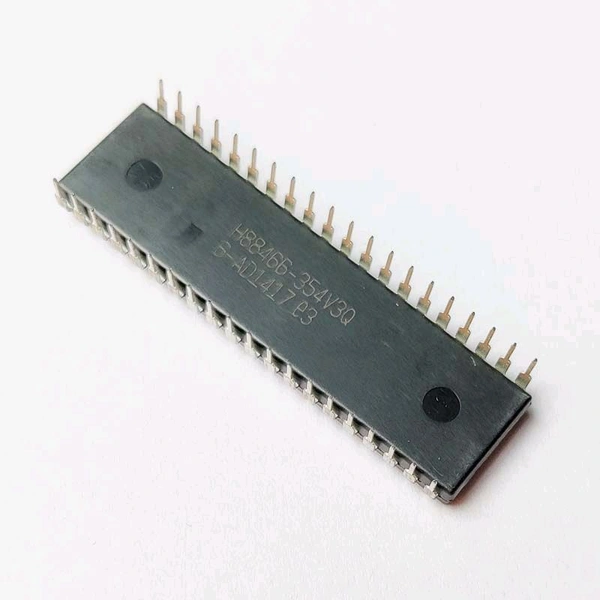

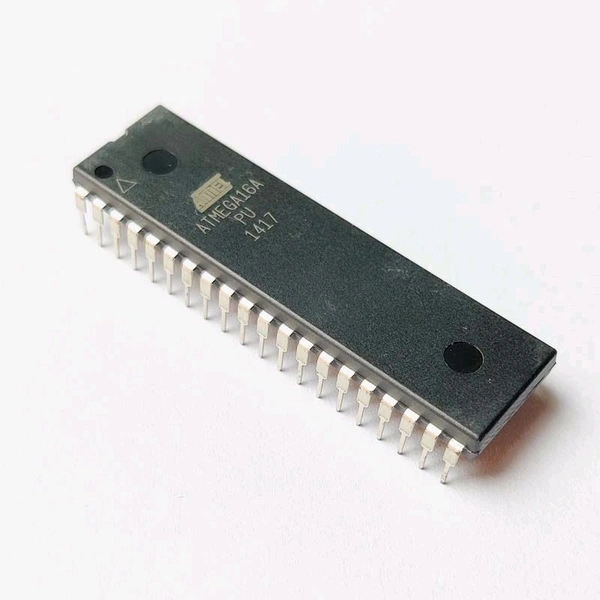

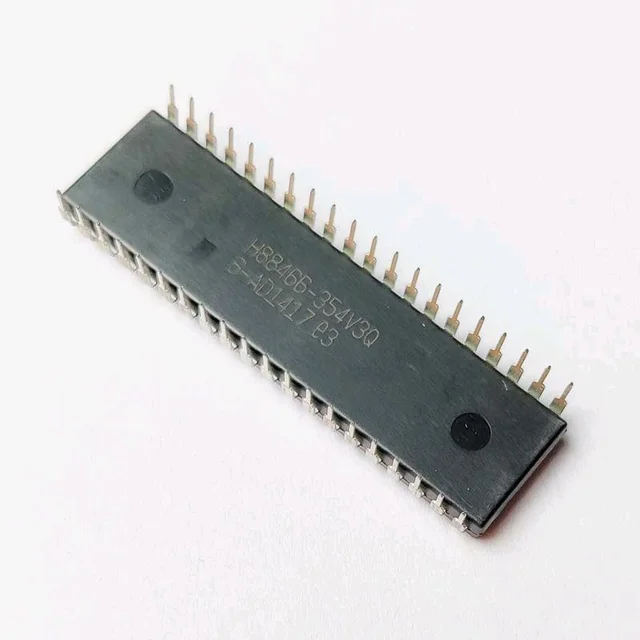

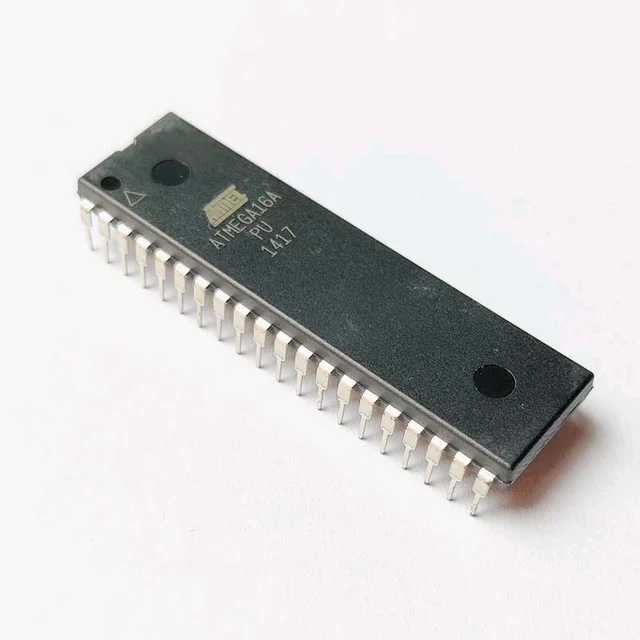

1x Atmega16A-PU Microcontroller (DIP Package)
