AT24C512 Serial EEPROM 512K Q8 C9





AT24C512 EEPROM IC Features:

Low-voltage and Standard-voltage Operation – 2.7 (VCC = 2.7V to 5.5V) – 1.8 (VCC = 1.8V to 3.6V)

Internally Organized 65,536 x 8

Two-wire Serial Interface

Schmitt Triggers, Filtered Inputs for Noise Suppression

Bidirectional Data Transfer Protocol

1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V) Compatibility

Write Protect Pin for Hardware and Software Data Protection

128-byte Page Write Mode (Partial Page Writes Allowed)

Self-timed Write Cycle (5ms Max)

High Reliability – Endurance: 100,000 Write Cycles – Data Retention: 40 Years



Package Includes:

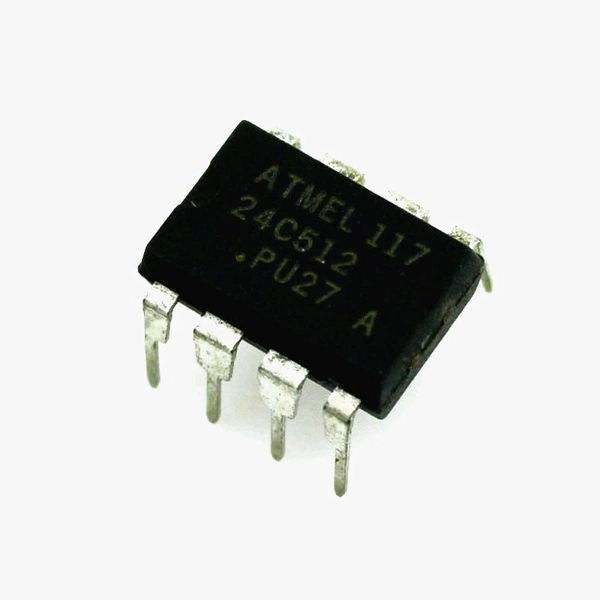

1 x AT24C512 Serial EEPROM 512K DIP Package
