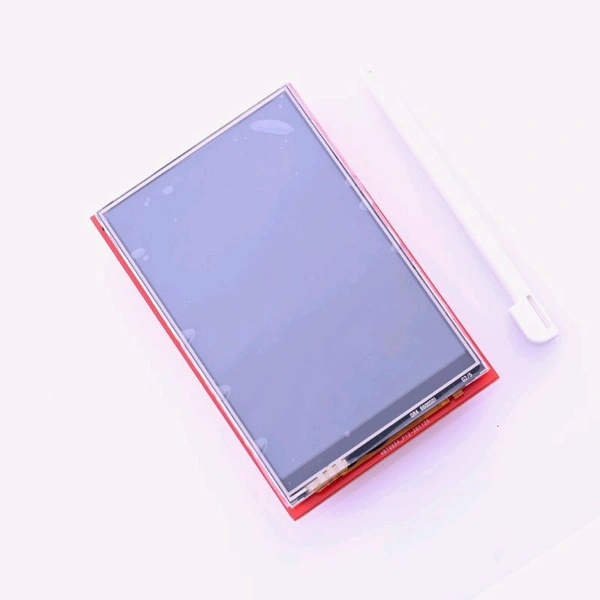

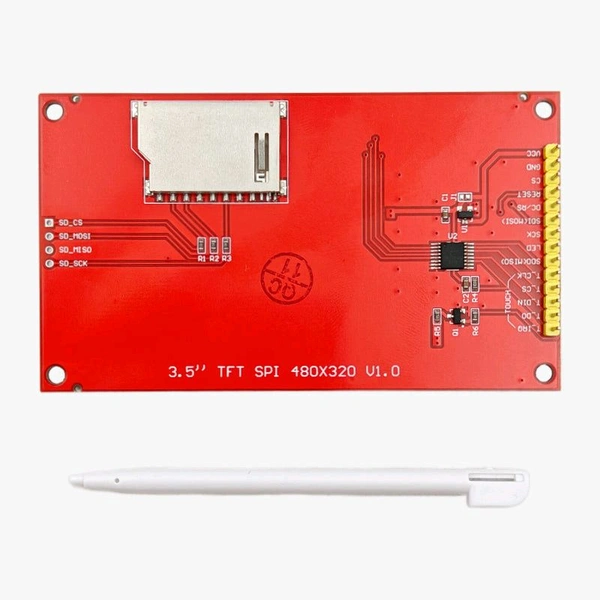

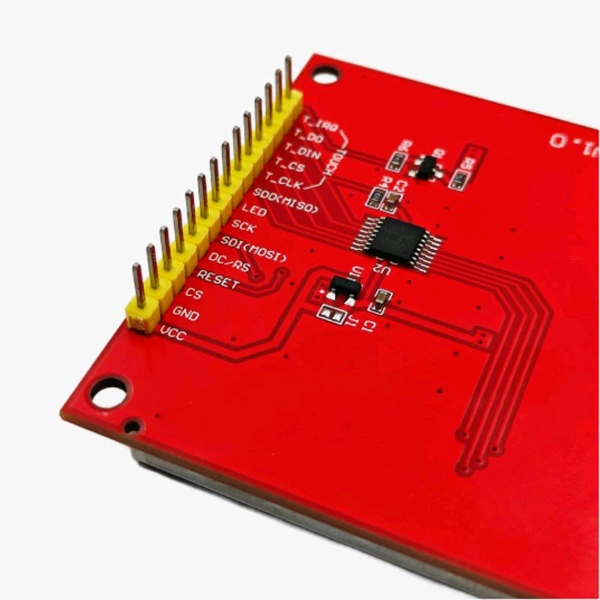

Arduino UNO 3.5 inch TFT Touch Screen LCD Module Q3 C4

Note: Product color may differ from the picture shown here.

Features of 3.5 inch TFT LCD Touch Screen Display Shield for Arduino Uno:

Resistive touch screen TFT LCD, 3.5inch, 480x320 resolution

Standard Arduino interface, compatible with development boards like Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO

Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control

PWM backlight control allows adjusting the backlight to a comfortable level

Micro SD slot, provides an easy way to store photos for displaying

Controlled via SPI, only a few Arduino pins are used

Comes with STM32 and Arduino examples, convenient for porting



Key Parameters of 3.5 inch TFT LCD Touch Screen Display Shield for Arduino Uno:

LCD Type: TFT

LCD Interface: SPI

LCD Controller: ILI9486

Touch Screen Type: Resistive

Touch Screen Controller: XPT2046

Colors: RGB, 65K colors

Resolution: 480x320 (Pixel)

Aspect Ratio: 8:5

I/O Voltage: 3.3V/5V

Package Includes:

1 x Arduino UNO 3.5 inch TFT Touch Screen LCD Module
