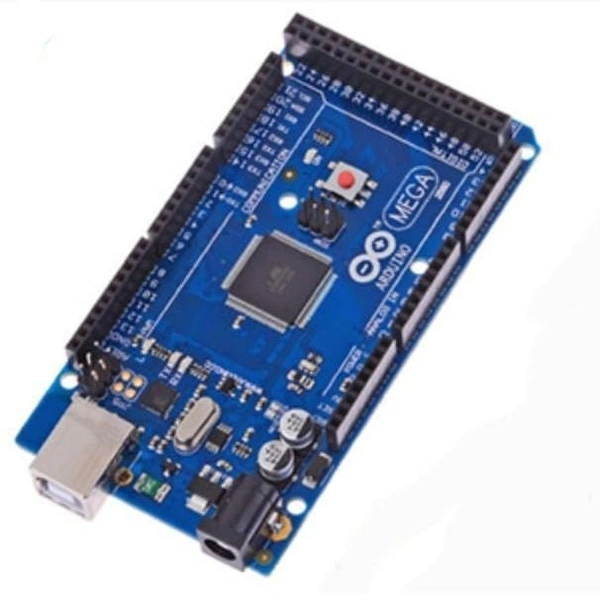

Arduino Mega R3 ATmega2650 Board

Product Details

• Product: Arduino Mega R3,
• Microcontroller: ATmega2650,
• Version: 3
• Chip Type: SMD
• Cable: not included
• Useful for a complex project

The Arduino Mega 2560 is a complete microcontroller development board of ATmega2560. Arduino Mega has a greater number of Input-output pins and gives larger space for the project making so it is useful for more complex projects. The Arduino Mega is a kind of plug and plays the system like you just need to connect a cable with a phone or laptop and you are ready to work with.

Arduino Mega board everything that is needed for any DIYers and makers.

Onboard Components

It has 54 digital input-output pins in which 14 pins provide PWM output and 16 Analog output pins

4 UARTs

A crystal oscillator of 16MHz

To Power it has a USB connection and a Power jack

ICSP header

And a reset button to reload or load a new program

Specification

Microcontroller used: ATmega2560

Logic level Operating Voltage: 5v

Recommended Input Voltage: 7-12 V

Limited Input Voltage: 6-20 V

Pins for Digital Inputs Outputs: 54 of which 14 pins provide PWM output

Pin for Analog Inputs: 16

DC Current for each input-output pins: 40 mA

Flash Memory: 256 KB in which bootloader uses 8 KB

SRAM and EEPROM: 8 KB and 4 KB Respectively

Clock Speed of board: 16 MHz as has 16MHz Crystal Oscillator

Instruction

Make sure to insulate the base when the board is powered

If the board is getting a heat disconnect from the laptop or other power sources

Programming instructions

The most common way to program Arduino Mega is Arduino IDE software

The microcontroller in Arduino Mega Atmega2560 comes pre-burned with bootloader because anyone can burn or upload a new code without any external hardware programmer and communicates using the original STK500 protocol
