Name: Arc Cigarette Lighter Parts - DIY Electronic Lighter Kit Q19 C1
SKU: SKU-6228
Price: 230 INR
Availability: InStock

₹ 230

₹ 250

8%

Delivery Options

Get delivery at your doorstep

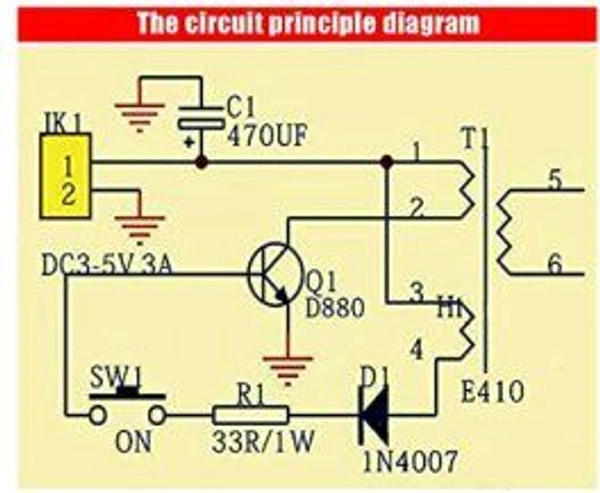

Smoking though it kills and create all sort of health problems yet there are billions of people all over the world who smoke. This is a DIY Electronic Lighter Kit which can ignite the cigarette paper due to very high temperature available at output. It is very small in size and require 5V and atleast 3A of current to operate but if you use 3V supply then the current demand will increase. So you need to connect an external battery to power the device like a 18650 cell our other lithium ion pouch cells if you want to keep the weight low and make the module portable. It is really easy to plug all the components on the PCB and solder them. It can also create a low hum electric arc if wires are close enough. It has transistor amplifier on board and can output voltage in range of 0.5kV to 0.8kV.

Specifications

Voltage and current power: DC 3-5V, current 5A, more than 15W. It is recommended to use a 3.7V 18650 lithium battery.

Output pulse voltage: 0.5kv-0.8kv

Working frequency: 20khz-25khz

Arc distance: 5-8 mm

Product Description

Arc Cigarette Lighter Parts DIY Electronic Lighter Kit

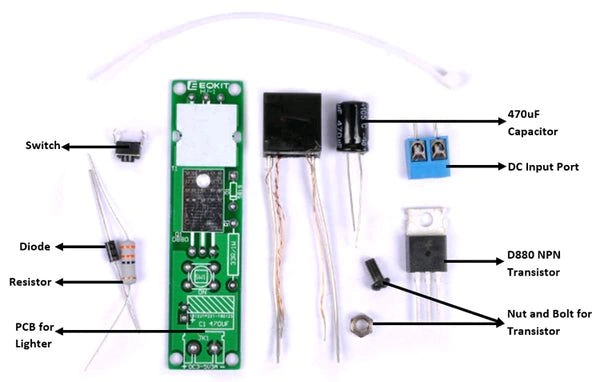

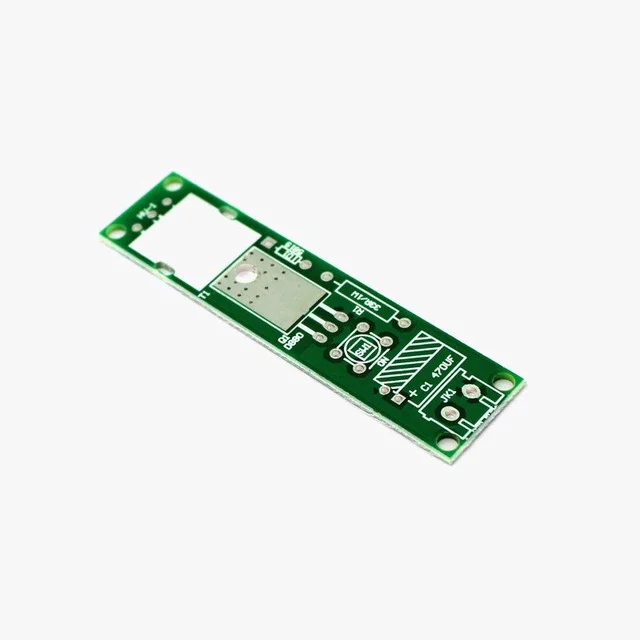

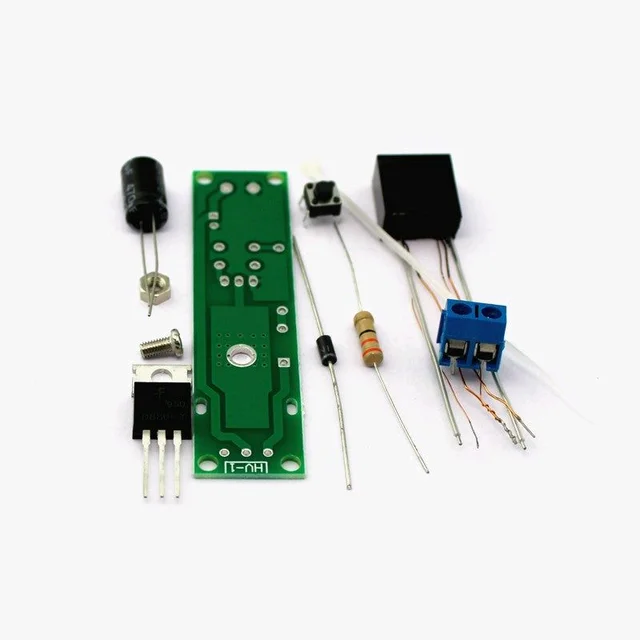

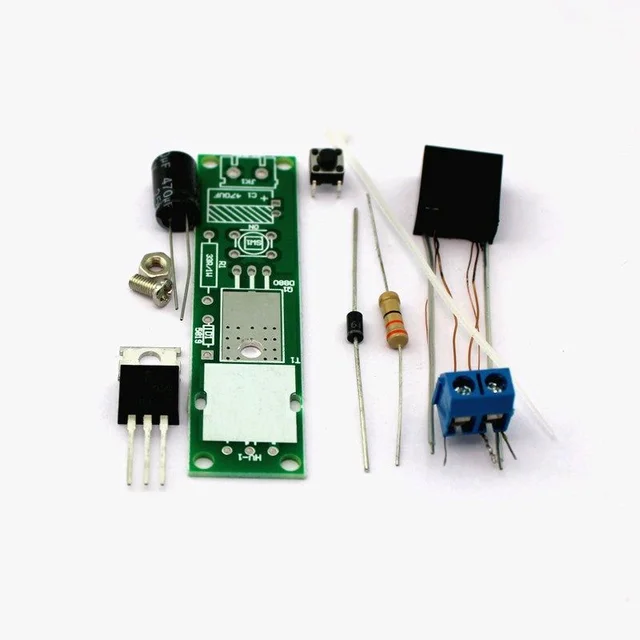

To use this DIY Kit, you need a soldering kit too. There are footprint on the PCB board to mark out the components to be soldered and put on. The Nut and bolt is to fix D880 Transistor on the board for better cooling.

Package Contents

1× Arc Cigarette Lighter Parts DIY Electronic Lighter Kit
