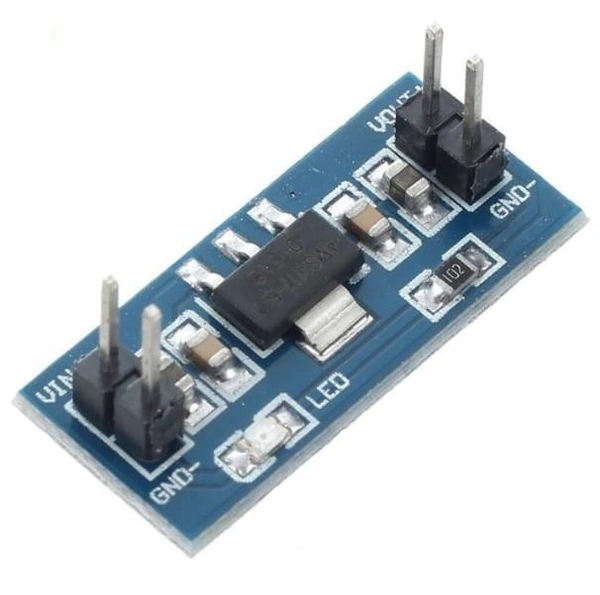

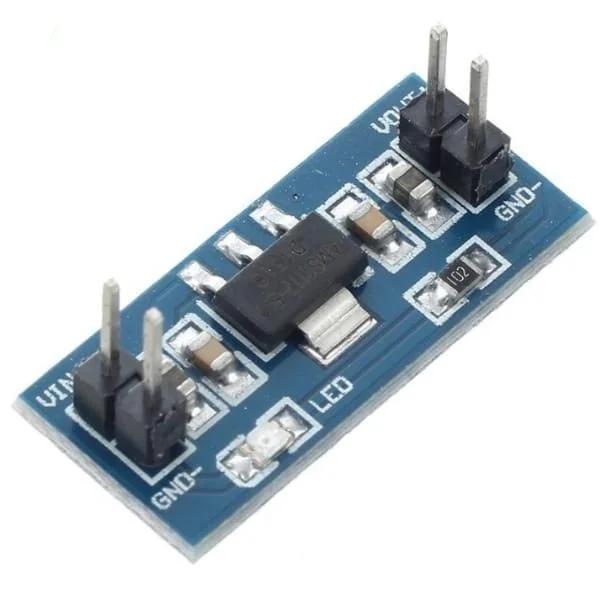

AMS1117 1.2V DC Power Supply Module

Product Details:

• Dimensions: 26mm x 12 mm
• Colour: Blue
• Output Voltage: 1.2v
• Input Voltage: 4.3V TO 15V Max
• Max Input Current: 1A

The AMS1117 series of fixed-voltage regulators modules are designed to provide up to 1A output current and to operate

down to 1V input/output differential. The dropout voltage of the device is 1.3V maximum, decreasing at lower load currents.

Features :

Output Current of 1A

Output Voltage: 1.2v

Operates Down to 1V Dropout

Line Regulation: 0.2% Max

Load Regulation: 0.4% Max

Suitable for 4.3-15V AC/DC input with PCB Terminals

Power LED for Outputs

Applications:

High-Efficiency Linear Regulators

Post Regulators for Switching Supplies

1.2V Linear Regulator

Battery Chargers

Active SCSI Terminators

Power Management for Notebook

Battery Powered Instrumentation
