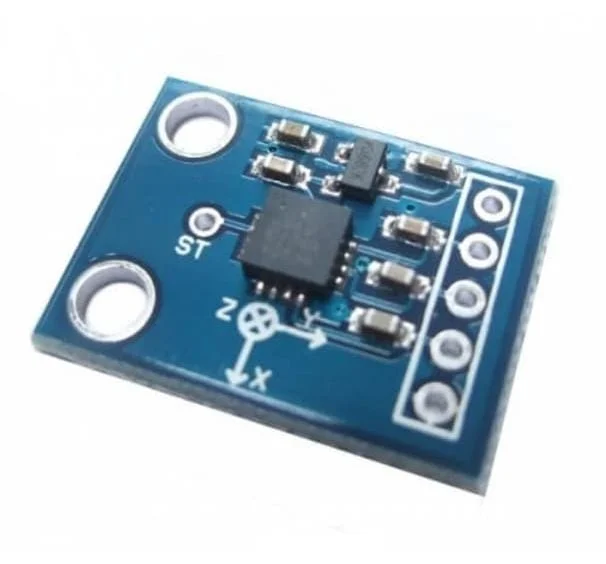

ADXL335 Triple Axis Accelerometer

Product Details

• 3-axis sensing Small
• low profile package 4 mm × 4 mm × 1.45 mm LFCSP
• Low power: 350 ?A (typical)
• Single-supply operation: 1.8 V to 3.6 V
• 10,000 g shock survival Excellent temperature stability
• BW adjustment with a single capacitor per axis
• RoHS/WEEE lead-free compliant

AdXL335 is a complete 3-axis accelerometer with signal conditional voltage outputs. It is a small thin and low power device. It measures the static acceleration of gravity in the tilt-sensing application as well as dynamic acceleration from motion shock and vibration with a minimum full-scale range of 3 g. the user can select the bandwidth according to application and it can be selected using CX CY and CZ capacitors at the XOUT YOUT and ZOUT pins.

Specification

3-axis sensing Small

Low profile package 4 mm × 4 mm × 1.45 mm LFCSP

Low power: 350 ?A (typical)

Single-supply operation: 1.8 V to 3.6 V

10000 g shock survival Excellent temperature stability

BW adjustment with a single capacitor per axis

RoHS/WEEE lead-free compliant
