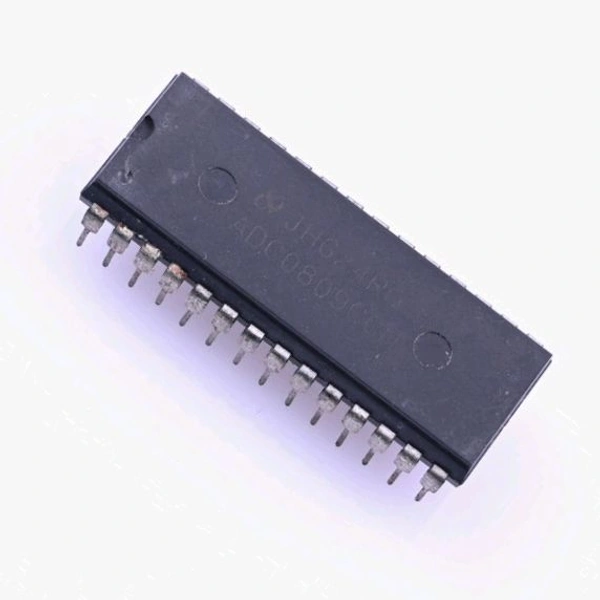

ADC0809 - 8-bit Analog to Converter ADC IC Q7 C4

The ADC0809 data acquisition component is based on the monolithic CMOS with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. These 0809 converters feature a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.

Input ranges from 0V to the input Vcc, could run through a single supply with 5V, has very low power operations limited to 15mW and the conversion Time is as fast as 100us.

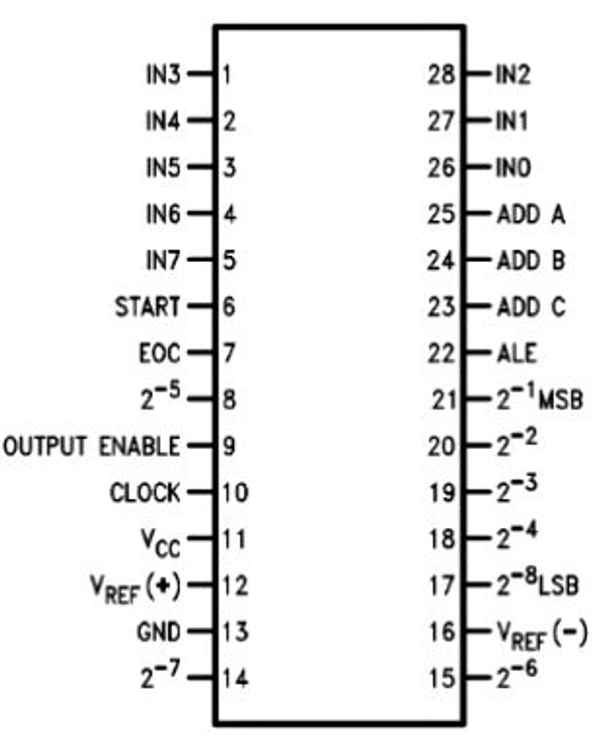

ADC0809 pinout:

ADC0809

ADC0809 features, specification

Features: -

This is an 8-bit analog-to-digital converter.

It is very easy to Interface to All Microprocessors

No Zero or Full-Scale Adjust Required for the operation

It has 8-Channel Multiplexer with Address Logic

Supports 0V to VCC Input Range

Outputs meet TTL Voltage Level Specifications

ADC0809 Equivalent to MM74C949-1

Specification: -

Resolution (Bits) 8

Sample rate (Max) (kSPS) 10

Number of input channels 8

Interface Parallel

Operating temperature range ( C ) -40 to 85

Package Group PLCC | 28

Power consumption (Typ) (mW) 15

Architecture SAR

Input type Single-Ended

Multi-channel configuration Multiplexed

Input range (Max) (V) 6

Input range (Min) (V) 0

Analog voltage AVDD (Min) (V) 4.5

Analog voltage AVDD (Max) (V) 6

Digital supply (Min) (V) 4.5

Digital supply (Max) (V) 6

INL (Max) (+/-LSB) 1.25



ADC0809 Applications:

Can be used with any mcu for A/D conversion

Sensor integrations

Raspberry pi A/D conversion

Can be used with 8051 mcu units

Parallel multiplexed conversion

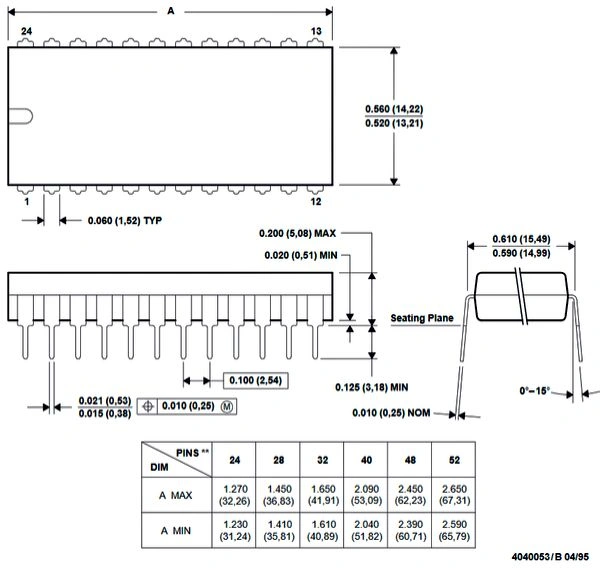

ADC0809 Dimension and footprint:

ADC0809 Dimension and footprint



Example Projects on ADC0809:

ADC0808/09 interfacing with 8051

Additional Resources:

ADC0809 Datasheet

Package Contains

1x ADC0809
