AD8232 ECG Heart Rate Monitor Sensor Module with ECG Cables & Electrodes Q4 C9

The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement.

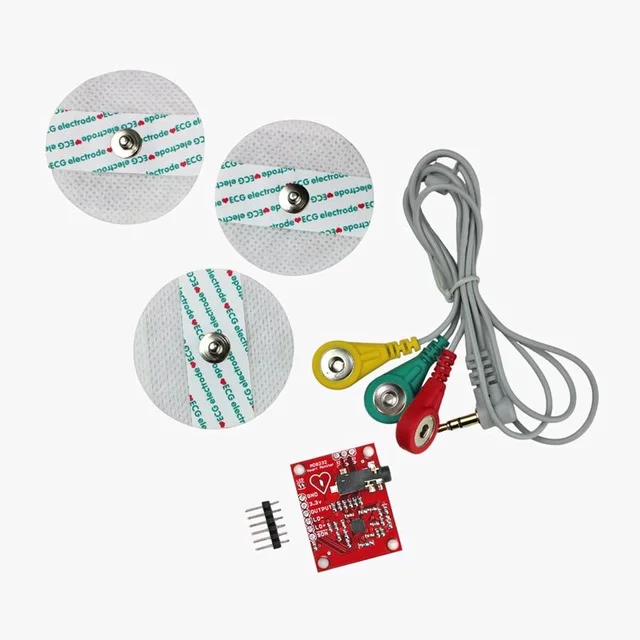

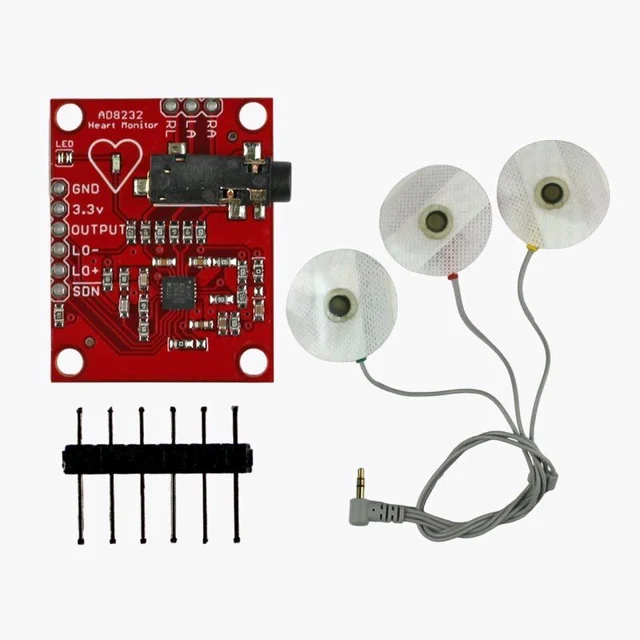

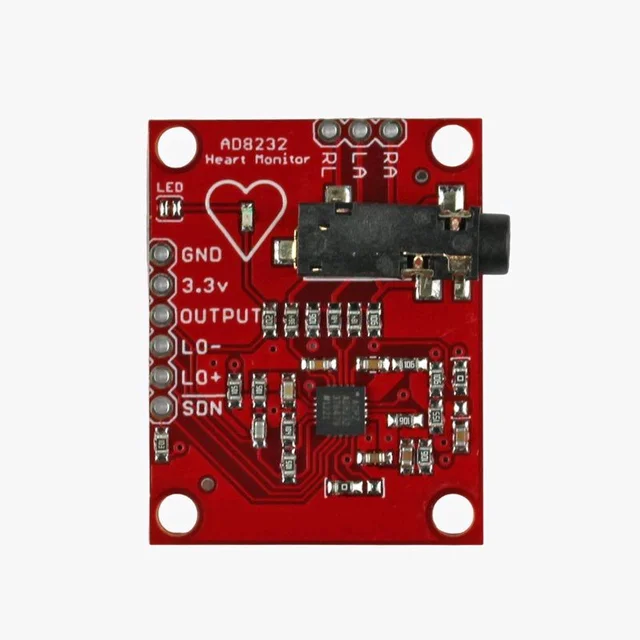

The AD8232 module breaks out nine connections from the IC that you can solder pins, wires, or other connectors to. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board. Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors. Additionally, there is an LED indicator light that will pulsate to the rhythm of a heartbeat.

Specifications:

Operating Voltage: 3.3V

Operating Temp: -40 to 90 °C

Cable Length: 100cm

Leads-Off Detection

Shutdown Pin

LED Indicator

3.5mm Jack for Biomedical Pad Connection

Note: This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions.
