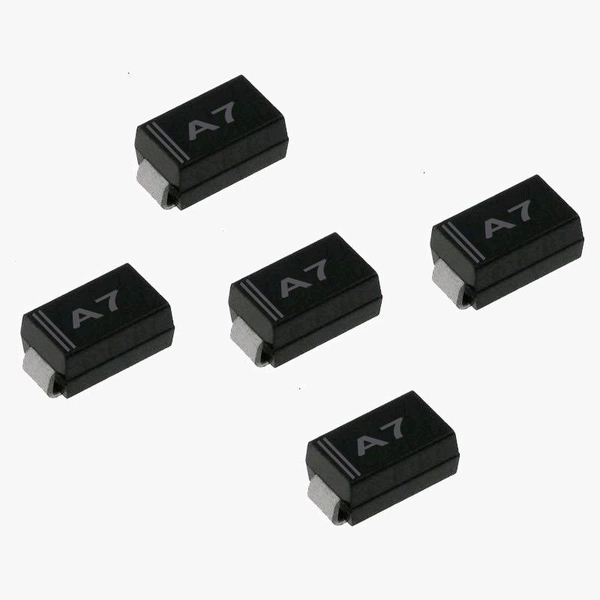

A7 / 1N4007 SMD Diode (Pack of 5) Q16 C3

Features :

Low forward voltage drop R-1

High current capability

High capability

High surge current capability

Exceeds environmental standards of MIL-S-19500/228

Mechanical Characteristics :

Case: Molded plastic, R-1 Epoxy

UL 94V-O rate flame retardant Lead

Axial leads, solderable per MIL-STD-202, method 208 guaranteed Polarity

Color band denotes cathode end Mounting position

Specifications :

Peak Repetitive Reverse Voltage (VRRM) 1000V

Maximum RMS Voltage (VRMS) 700V

Maximum DC Blocking Voltage (VDC) 1000V

Maximum Average Forward Rectified Current (IFAV) 1A

Non-Repetitive Peak Forward Surge Current (IFSM) 30A

Operating Junction Temperature Range (TJ) − 65°C to +175°C

Storage Temperature Range (Tstg) − 65°C to +175°C

Quantity 10 Pieces

Package includes :

A7 / 1N4007 SMD Diode x  5 piece
