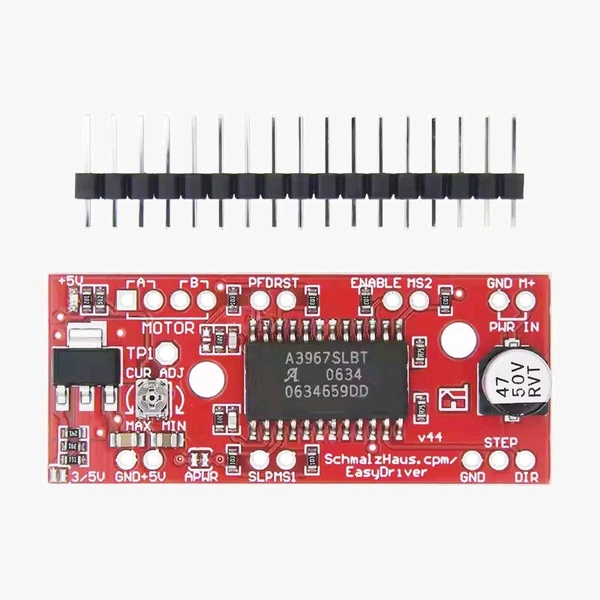

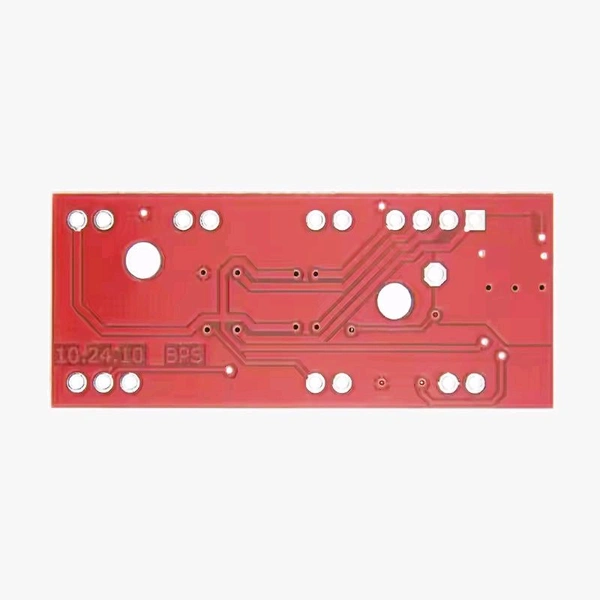

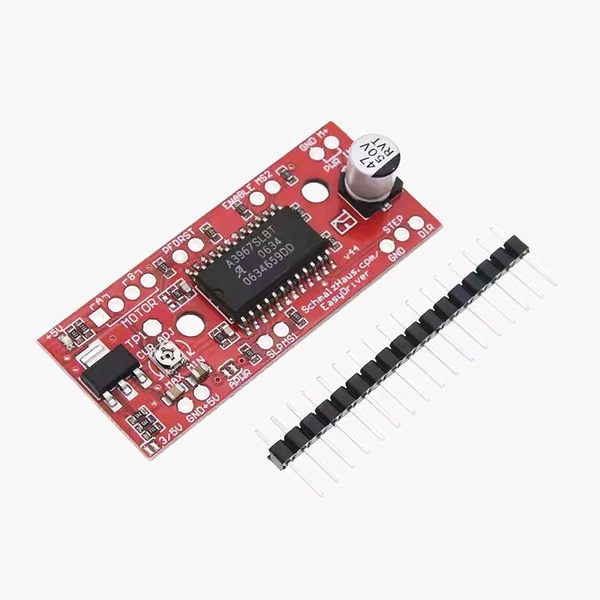

A3967 Stepper Motor Driver Module Q11 C5

Features of A3967 Stepper Motor Driver Module:

Microstepping support (Full, Half, Quarter, and Eighth step) for smoother operation.

Adjustable current control to prevent overheating and protect the motor.

Compatible with 5V and 3.3V logic levels, allowing easy interfacing with microcontrollers.

Built-in thermal shutdown, crossover-current protection, and under-voltage lockout for safety.

Simple step and direction control interface.

Specifications of A3967 Stepper Motor Driver Module:

Driver IC: Allegro A3967

Input Voltage: 7V - 30V DC

Logic Voltage: 3.3V / 5V

Max Output Current: 750mA per phase

Microstepping Modes: Full, ½, ¼, ⅛ step

Control Interface: Step and Direction Pins

Protections: Thermal shutdown, short circuit, and overcurrent protection

Package Includes:

1 × A3967 Stepper Motor Driver Module
