A2212 2200Kv Brushless Outrunner Motor Aircraft Quadcopter Helicopter C7 B6

Drone Motors Drones/UAV

A2212 2200KV Brushless Outrunner Motor Aircraft Quadcopter Helicopter

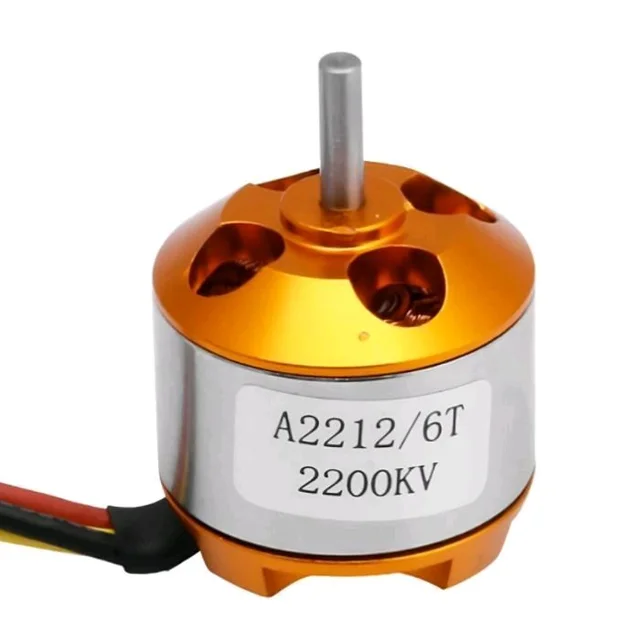

The A2212 2200Kv BLDC motor is a brushless outrunner motor specifically made for quadcopters and multi-rotors. It provides high performance, superpower, and brilliant efficiency. These brushless DC motors are perfect for medium-sized quadcopters with 8-inch to 10-inch propellers. These 2200KV brushless DC motors can be used to build powerful and efficient quadcopters. They come with mounting bolts, prop adapters, and power leads.

If you want to Build a Quadcopter for your own you can do it too. For that you need

 S.no Component

1 Drone frames

2 Flight Controller (FC)

3 ESC or Electronic Speed Control

4 RC transmitter & receiver

5 Power Distribution Board

6 Propellers

7 Battery and charger



About BLDC Motor:

BLDC Motor (Brushless direct current electric motors), also known as electronically commutated motors, are available (ECMs, EC motors). Primary efficiency is a critical feature of BLDC motors. Because the rotor is the sole magnet bearer and does not require any power. That is, there are no connections, no commutator, and no brushes. Instead, the motor makes use of control circuitry. BLDC motors use controllers, rotary encoders, or a Hall sensor to detect where the rotor is at any given time.

Outrunner:

The field magnet is a rotating drum rotor that revolves around the stator. This style is preferred for applications that require high torque but do not require high rpm. These are the motors found on photography multirotors, such as high-powered drones. Brushless DC motors(BLDC) look different depending on who makes them, but they are typically short and stout. Brushless multirotor propellers are almost always mounted directly to the motor shafts.

Pros: BLDC motor or Brushless DC motors are extremely powerful and provide excellent torque without the use of gears. They also have a long lifespan if properly maintained. Brushless motors can operate for much longer periods of time without suffering heat damage than coreless motors (the heat may temporarily reduce the performance of brushless motors, to a degree, but once they cool down, their performance should revert to normal.)



Browse the exclusive collection for Drone Propellers.

Features:

KV Rating: 2200KV, indicating the motor’s RPM per volt applied.

Voltage: Suitable for 2-3S Li-Poly batteries.

Dimensions: Approximately 27.7mm x 27mm.

Output Shaft Diameter: 3.17mm.

Weight: About 50 grams.

Material: Made of durable metal.

Efficiency: High efficiency and strong anti-interference ability.

Heat Dissipation: Equipped with an independent heat sink for better heat dissipation.

Safety Features: Safe power-on function and throttle stroke adjustment.

Applications:

Drones

Quadcopters

Multirotor's

RC Airplanes

UAV

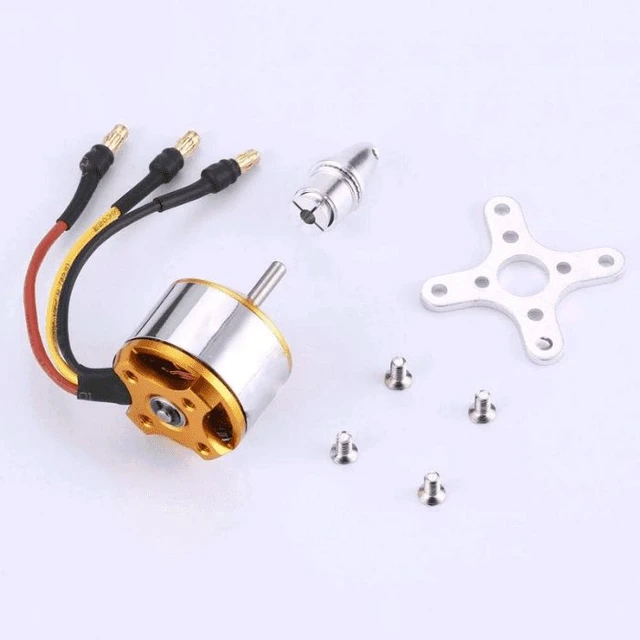

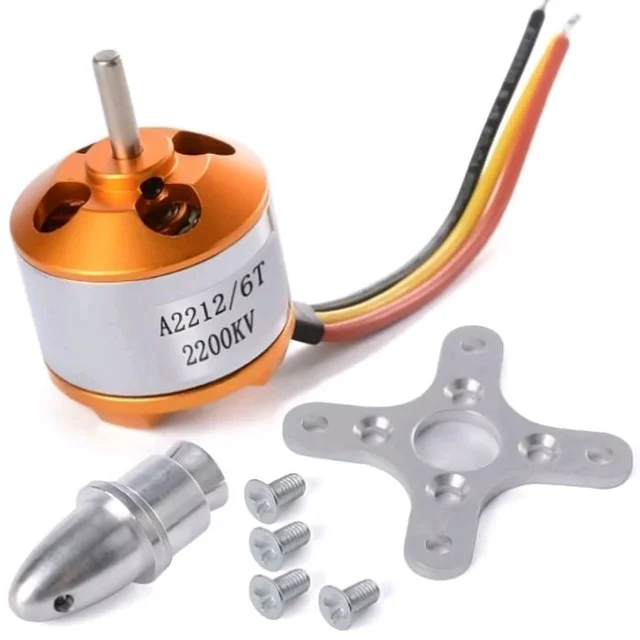

Package Includes:

1 x A2212 2200Kv BLDC Brushless Motor

1x adapter for shaft

1 x Mounting Adapter set

Specifications:

Motor BLDC Brushless Motor

Model A2212

Kv 2200

Stator diameter 22mm

Stator length 13mm

Stator arms 12mm

Magnet Poles 12

Rotor Diameter 28mm

Shaft Diameter 3.17mm

Weight 50 grams
