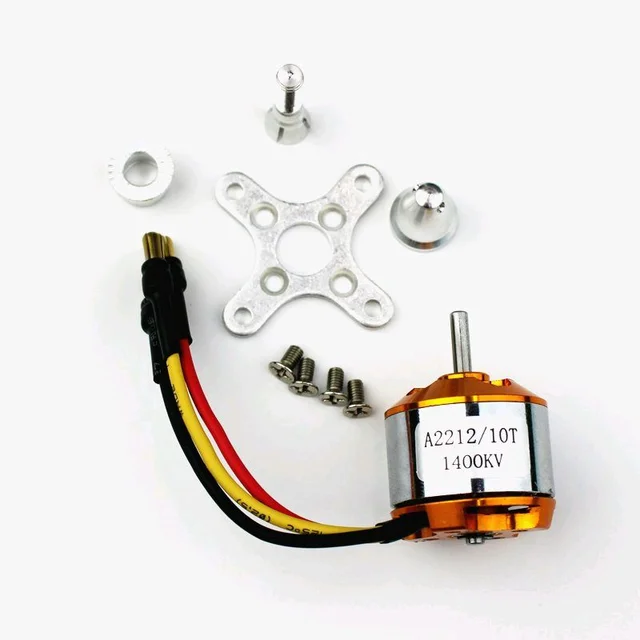

A2212 10T/13T 1400kV BLDC Motor Q11 C4
A2212 10T/13T 1400kV BLDC Motor Q11 C4

A2212 10T/13T 1400kV BLDC Motor Q11 C4

₹ 455

₹ 480

5%

Whatsapp
Facebook

Delivery Options

Get delivery at your doorstep

A2212 BLDC Motor is a 3-phase out-runner type popular BLDC motor commonly used in Drones and other multirotor applications. The motor is rated for 1400KV and has an efficiency of 80%. The A2212 motor requires an ESC (Electronic speed controller) to control its speed. The motor can be easily be controlled with our 30A ESC and when coupled with our 1045 Propeller Blades it can provide thrust up to 1000gms. Four of these A2212 Motors can be easily mounted on the F450 Quadcopter Frame to provide a total thrust of 4kgs enabling you to build powerful drones.

Also check: A2212/6T 2200kV & 1000KV BLDC Motor

Specifications of A2212 1400kV BLDC Motor:

ESC Specifications: 18A (min) / 30A (recommended)
No Load Current: 500mA @10V
Nominal Current: 12A/60s
No. of Cells: 2S or 3S Li-Po
Thrust with 3S: 1000gm (with 1045 propeller)
Note: Appearance might be differ from the picture shown here.



Package Contains:

1 x A2212 10T/13T 1400kV BLDC Motor
