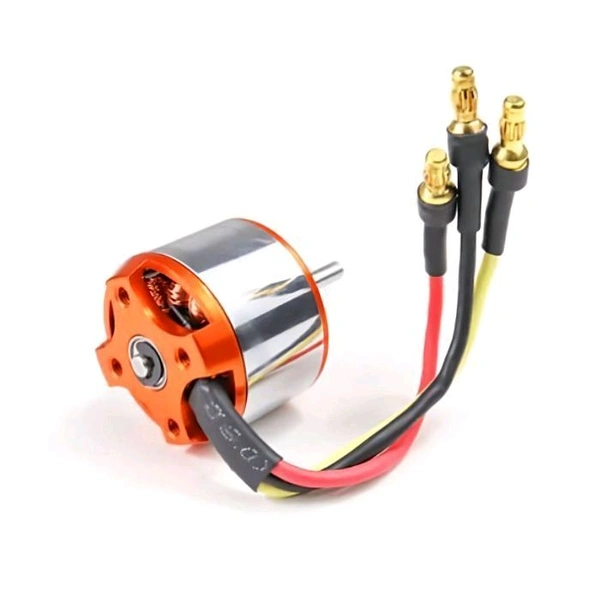

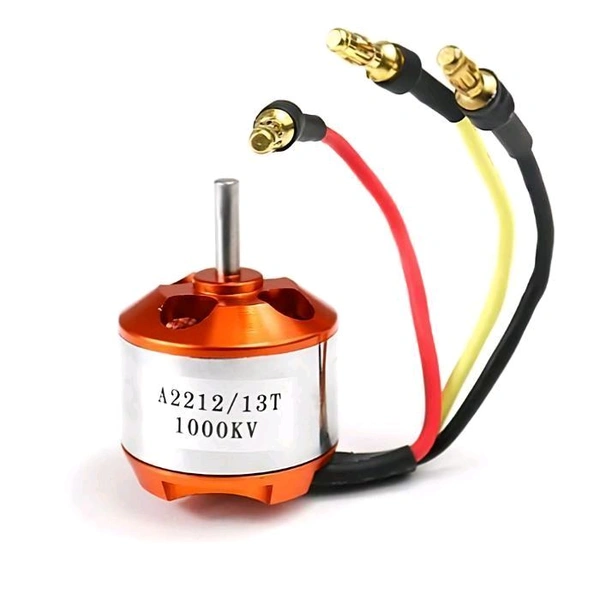

A2212 1000KV BLDC Motor for RC Drones and Quadcopters C7 B6

This A2212 1000KV Brushless Motor for Drones designed for quadcopters and multi-rotors. It has exceptional performance, superpower, and efficiency. These motors are ideal for medium-sized quadcopters with propellers ranging from 8 to 10 inches in diameter. Build powerful and efficient quadcopters with this.

This BLDC Motor comes with an integrated prop adaptor for use with a variety of prop styles, including a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also includes an aluminum mount for quick and simple installation on your quadcopter frame. The 1000Kv Brushless Quadcopter Motors kit includes mounting bolts, prop adapters, and power leads.



Buy the SimonK 30a BLDC ESC for precise brushless motor control.

About BLDC Motor:

Brushless DC motors also known as electronically commutated motors, are available (ECMs, EC motors). Primary efficiency is a critical feature of brushless motors. Because the rotor is the sole magnet bearer and does not require any power.

That is, there are no connections, no commutator, and no brushes. Instead, the motor makes use of control circuitry. Brushless DC motors use controllers, rotary encoders, or a Hall sensor to detect where the rotor is at any given time.

Features:

The steel construction can resist the demands of competition.

They are appropriate for a variety of Quadcopter and Hexacopter Frames due to their lightweight construction.

Small size.

Provides excellent performance and value.

For the optimum RC experience, use a smooth throttle response.

Applications:

Drones

Quadcopters

Multirotors

RC Airplanes

UAV

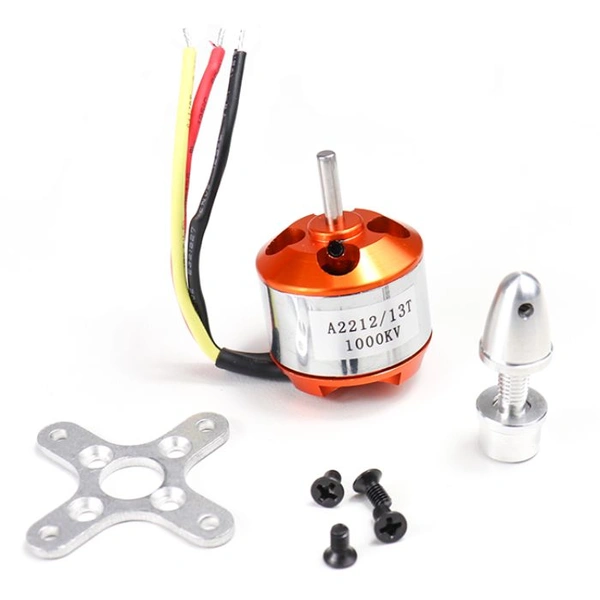

Package Includes:

1 x A2212 1000Kv BLDC Brushless Motor

1 x Adapter for the shaft

1 x Mounting Adapter set

Specifications:

Model

A2212

Motor KV (RPM/V)

1000

Compatible LiPO Batteries

2S ~ 3S

Shaft Diameter (mm)

3.17

Max. Efficiency Current (A)

4 ~ 10

Maximum Power (W)

150

No-Load Current (mA)

500

Internal Resistance(mΩ)

90

Maximum Efficiency

80%

Poles

14

Length (mm)

27.5

Width (mm)

27

Weight (gm)

64

Model

XT60

Bullet connector

3.5mm
