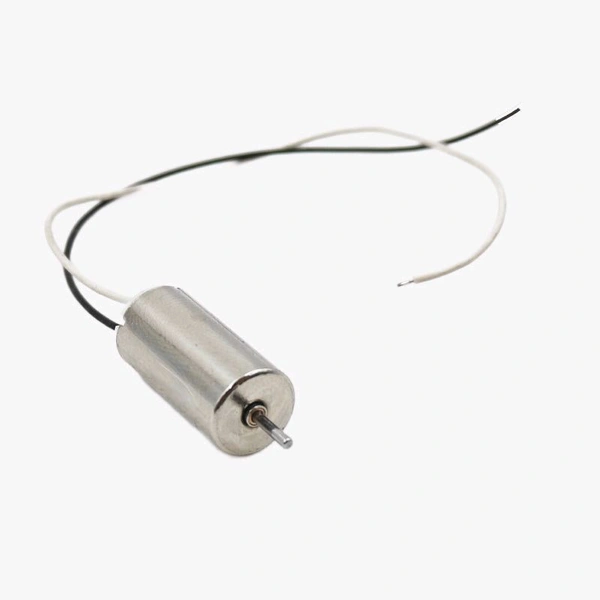

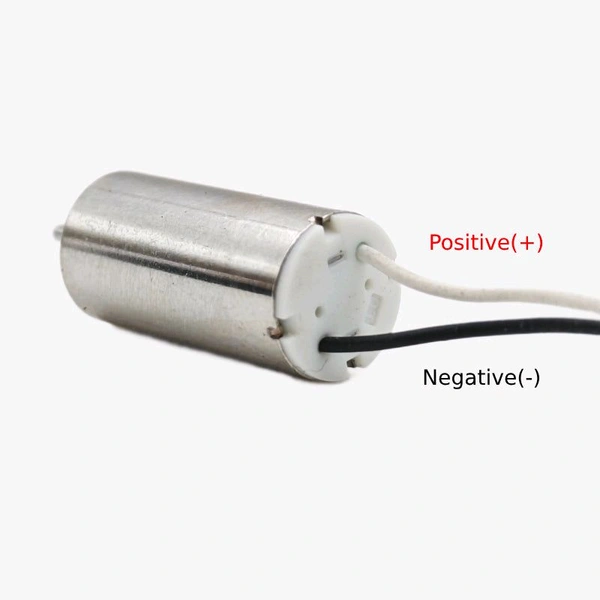

816 Magnetic Micro Coreless Drone Motor CCW (Anticlockwise) Q20 C1

Also check: 816 Magnetic Micro Coreless Drone Motor CW & Propellers

This 816 Magnetic Micro Coreless Drone Motor CCW is specifically built for larger micro drones, offering higher torque and improved flight stability. Its high-quality magnetic components improve durability and overall efficiency. The compact form factor makes it easy to integrate into various aerial and robotic systems.

816 Magnetic Micro Coreless Drone Motor (CCW) Features:

High-speed 48,000 RPM coreless motor for smooth and stable operation

Anticlockwise (CCW) rotation for precise flight control in micro drones

Lightweight and compact for optimal drone performance

Enhanced efficiency with premium magnetic components

Designed for higher torque and consistent thrust output

Operates on 3.7V (1S LiPo battery) for reliable power delivery

Perfect for DIY drone projects, robotics, and model aircraft

816 Magnetic Micro Coreless Drone Motor (CCW) Specifications:

Parameter Specification

Rotation Direction Anticlockwise (CCW)

Rated Speed (RPM) 48,000

Rated Voltage (V) 3.7

Operating Current (A) 0.15

Operating Temperature (°C) -10 to 50

Shaft Diameter (mm) 1

Motor Color Silver

Motor Diameter (mm) 8

Motor Length (mm) 16

Motor Material Metal

Cable Length (cm) 10

Package Includes:

1 x 816 Magnetic Micro Coreless Motor (Anticlockwise)
