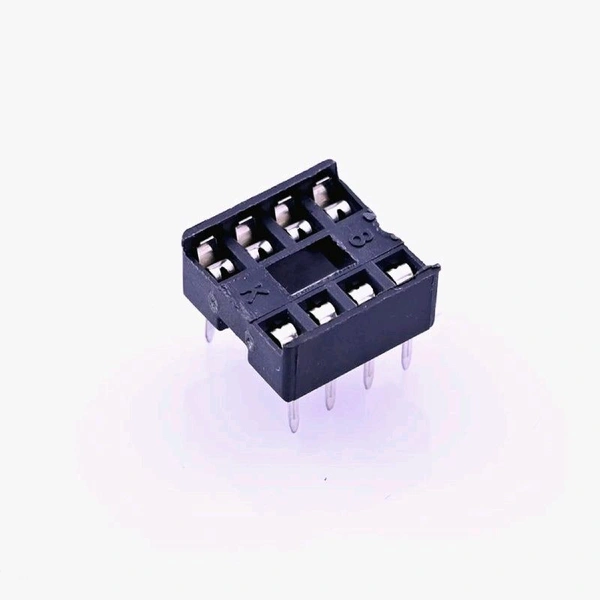

8 Pin DIP IC Base/Socket Q12 C4

Name: 8 Pin DIP IC Base/Socket Q12 C4
SKU: SKU-6301
Price: 4 INR
Availability: InStock

₹ 4

₹ 5

20%

Delivery Options

Get delivery at your doorstep

This is an 8 pin IC socket that is used as a base for 8 pin ICs with DIP package. It has wide enough holes to allow easy insertion of ICs. With this component, designers can mount the IC directly to the PCB or the perf board without having to solder the IC directly to the PCB. Because the IC is not soldered directly to the PCB, it can be easily replaced or reused in other circuits as per requirement. Commonly, the 8 pin IC base is used in prototypes / PCB circuit design testing. They can be joined end to end when working with ICs with more than 8 pins. The contacts of the IC base are tin-plated to reduce oxidation.

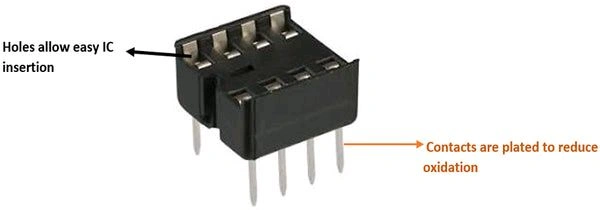

8-Pin-DIP-IC-Base

Specifications of the 8 pin IC Base

Protected open entry for easy insertion of IC

Contacts: Brass contacts with tin-surface plating

Contacts resistance : 10 mW

Current rating :1 A

Insulator : Thermoplastic Polyester

Colour: Black

Additional Material

8 pin IC Base datasheet

Package Includes

1 x 8 Pin DIP IC Base/Socket
