Name: 7-Segment Display (Common Cathode) - Red - 0.56 inch Q3 C3
SKU: SKU-6363
Price: 16 INR
Availability: InStock

₹ 16

₹ 18

11%

Delivery Options

Get delivery at your doorstep

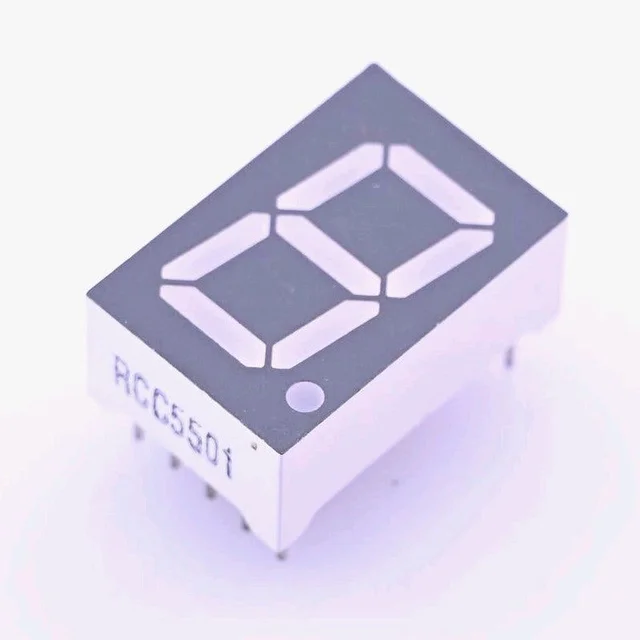

This is a 13 mm single character 0.56 inch 7-segment common cathode display. It is designed such that all the cathode pins of the LEDs are connected to ground. The viewing distance can be up to 7m and the display color is red. Alternative to this, is the 7-segment common anode display.

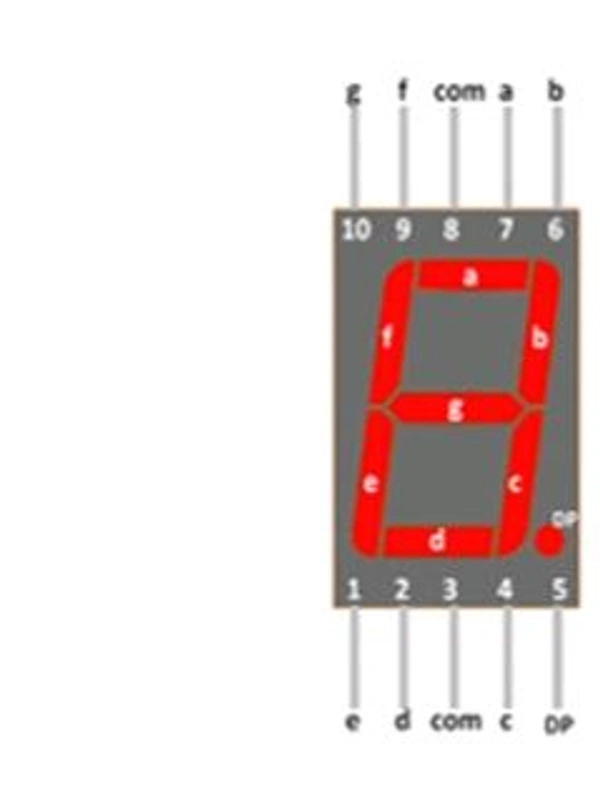

Pin Description of the 7-Segment Display

Pin-Description

7-segment

Specifications of the seven segment common cathode

Evenly lighted segments

Common- Cathode Circuitry

Color : Red

Wide Viewing angle, ± 50 ° angle

Luminous intensity: 2800 to 9000 ucd

Wavelength: 612 to 625 nm

Typical forward voltage : 2V

Current Consumption : 30mA/segment

Peak Current :70mA

Package: 13mm

Additional Resources

7-Segment display datasheet

Package Includes

1 x 7-Segment Display (Common Cathode) - Red
