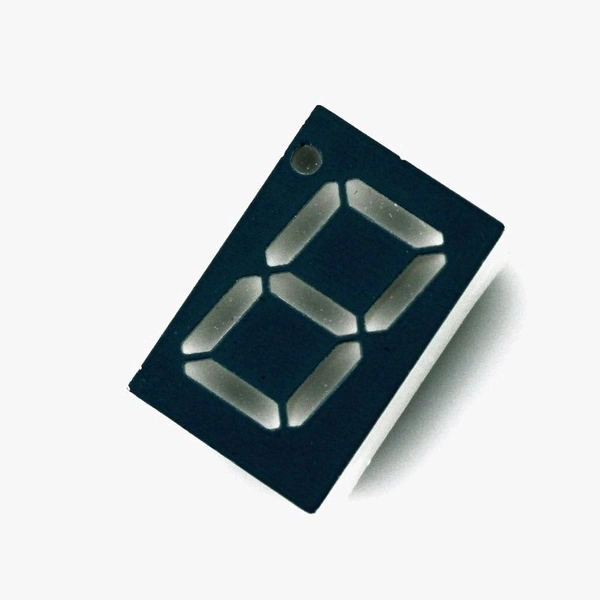

Name: 7-Segment Display (Common Anode) - Red - 0.56 inch Q3 C3
SKU: SKU-6365
Price: 16 INR
Availability: InStock

₹ 16

₹ 20

20%

Delivery Options

Get delivery at your doorstep

This is a 13 mm single character 0.56 inch 7-segment common cathode display. It is designed such that all the anode pins of the LED are connected to Vcc. The viewing distance can be up to 7m and the display color is red. The drive IC has to sink enough current through it to glow the respective LED. Seven segment Display is commonly used along with microcontrollers or display drivers in applications where a bigger and a brighter display are needed. Alternative to this, is the 7-segment common cathode display.

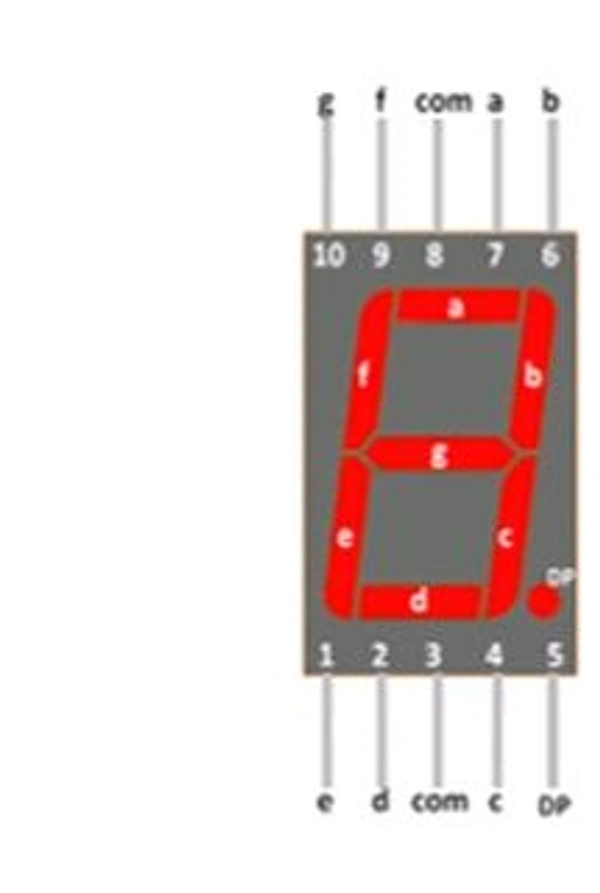

Pin Description of the 7 Segment Display

Pin-Description

7-segment

Specifications of the 7-segment Common Anode:

Evenly lighted segments

Common Anode Circuitry

Color : Red

Wide Viewing angle, ± 50 ° angle

Luminous intensity: 2800 to 9000 ucd

Wavelength: 612 to 625 nm

Typical forward voltage : 2V

Current Consumption : 30mA/segment

Peak Current :70mA

Package: 13mm

Additional Resources

7-Segment display datasheet

Package Includes

1 x 7-Segment Display (Common Anode) - Red
