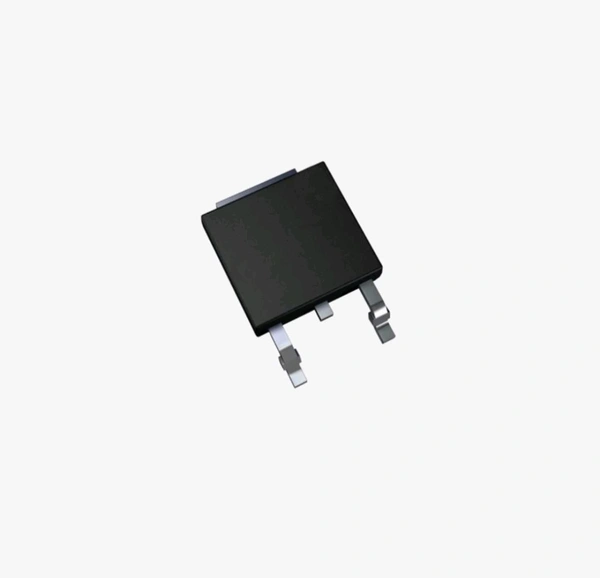

78M15/7815 - 15V Positive Voltage Regulator IC - TO-252 SMD Package Q1 C13

7815 Voltage Regulator Key Features:

Type: Positive Voltage Regulator

Package: TO-252 (Surface Mount Device)

Output Voltage: 15V

Maximum Output Current: 500mA

Input Voltage Range: Up to 35V

Dropout Voltage: Typically 2V

Thermal Overload Protection: Protects the IC from overheating

Short-Circuit Protection: Protects against excessive current draw

Output Voltage Tolerance: ±2%

Applications:

Power Supplies: Suitable for use in regulated power supply circuits.

Industrial Equipment: Used in various industrial applications requiring stable voltage.

Consumer Electronics: Ideal for providing stable voltage in consumer electronic devices.

Telecommunication: Useful in telecommunication equipment requiring regulated voltage.

Battery-Powered Devices: Suitable for battery-powered applications due to low dropout voltage.

7815 SMD IC Pin Configuration:

Pin 1 (GND): Ground

Pin 2 (Input): Input voltage

Pin 3 (Output): Regulated output voltage

Tab: Internally connected to Pin 2 (Output) for heat dissipation

Electrical Characteristics:

Input Voltage (Vin): Up to 35V

Output Voltage (Vout): 15V

Output Current (Iout): 500mA max

Dropout Voltage: 2V typical

Output Voltage Tolerance: ±2%

Load Regulation: 0.1% (max)

Line Regulation: 0.02%/V (max)

Quiescent Current: Typically 4mA

Package Includes:

1 x 78M15/7815 - 15V Positive Voltage Regulator IC - TO-252 SMD Package

www.roboelements.in

Note: Product images are for illustrative purposes only and may differ from the actual product.
