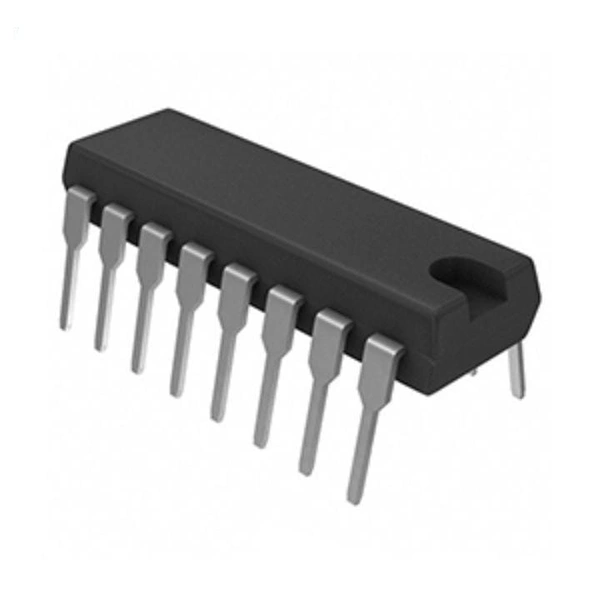

74HCT164 8 bit shift register Serial In Parallel Out Shift Register
₹ 29 / Piece
Delivery Options
Get delivery at your doorstep
Product details
- Product type: 8-bit shift register
- Input-output type: serial in parallel out
- IC number: 74HCT164
- Technology: TTL
- Family: 74 series
- Number of pins: 16
- Pin type: through hole
- Package type: PDIP-16
- Package contains: 1 x 74HCT164 IC (original)
74164 IC is an 8 bit serial-in the parallel-out shift register. The IC has two serial data inputs DSA and DSB any input can be used to enter data and 8 parallel data outputs line as Q0 to Q7. The has a clock input master reset and clear.
Specification
Voltage supply: 4.75V-5.25V
Typical voltage supply: 5V
Low-level input voltage: 0.8V
High-level input voltage: 2V
Low-level output current: 16mA
High-level output current: -0.4mA
TTL compatible
Gated serial data inputs
Asynchronous master reset
