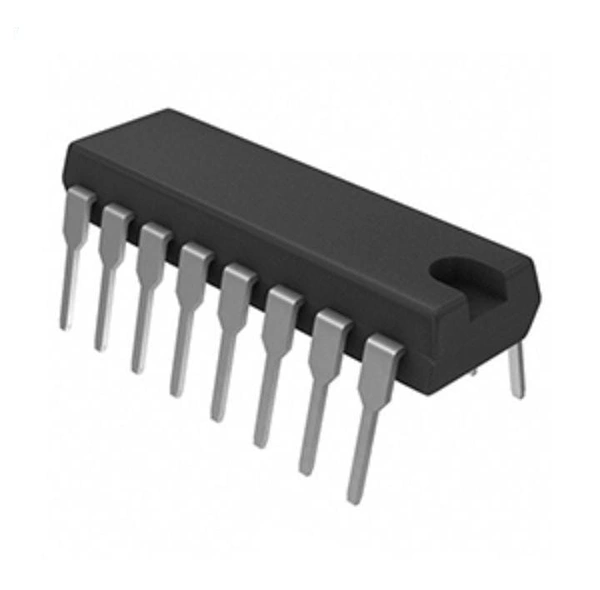

74HC273 IC Octal D Type Flip Flop with Reset and Clear Delay Flip Flop

Product details

• Product type: octal D flip-flop IC
• IC number: 74HC273
• Technology: CMOS
• Logic family: 74 series
• Number of pins: 20
• Pin type: through hole
• Package: PDIP-20 tube type
• Package contains: 1 x 74273 IC

74273 is a positive edge triggered octal D flip-flop with reset and clear. The IC has 2-6V operating voltage and high noise immunity. The device utilizes CMOS logic circuitry to implement flip-flop and has a plastic DIP-20 tube type package.

Specification

<li>Voltage supply: 4.5-5.5V

<li>Typical voltage supply: 5V

<li>Maximum clock frequency: 30MHz

<li>High-level output current: -800�A

<li>Low-level output current: 16mA

<li>High-level input voltage: 2V

<li>Low-level input voltage: 0.8V

<li>Current rating: 5.2mA

<li>Propagation delay: 18ns

<li>High speed

<li>Low power consumption

<li>TTL compatible

<li>High noise immunity
