74HC165 74165 IC 8 Bit Shift Register Parallel to Serial

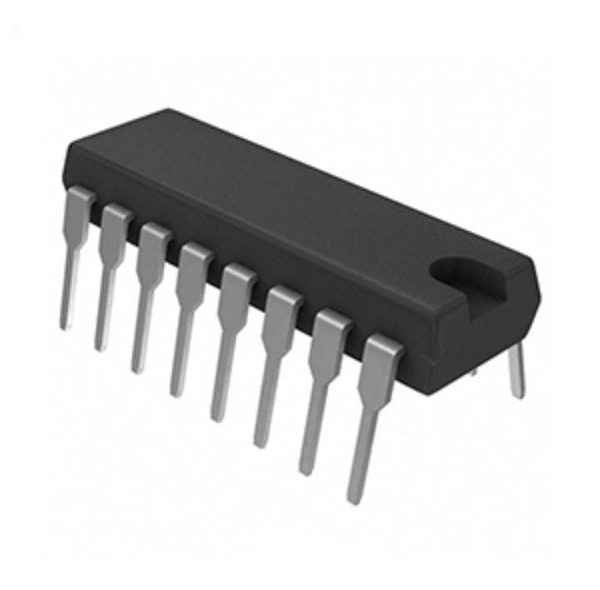

Product details

• Product type: 8 bit shift register
• IC number: 74165
• Family: 74
• Number of circuits: 1
• Number of pin: 16
• Technology: CMOS
• Package: PDIp-16 tubing
• Package contains: 1 x 74165 shift register IC

74165 IC is an 8-bit parallel load and serial-in register with complementary outputs which are available from the last stage. It shifts data in the direction of QA towards QH when clocked. All inputs feature with diode clamps which minimizes the transmission line effect so it simplifies system design.

Specifications

<li>Voltage supply: 4.5V to 5.5V

<li>Typical voltage supply: 5V

<li>High output current: -0.4mA

<li>Low output current: 8mA

<li>Counting sequence: serial or parallel to serial

<li>Propagation delay: 165ns at 2V

<li>Low power dissipation

<li>Gated clock inputs

<li>Complementary outputs

<li>Direct overriding data inputs

<li>Maximum clock frequency: 35MHz
