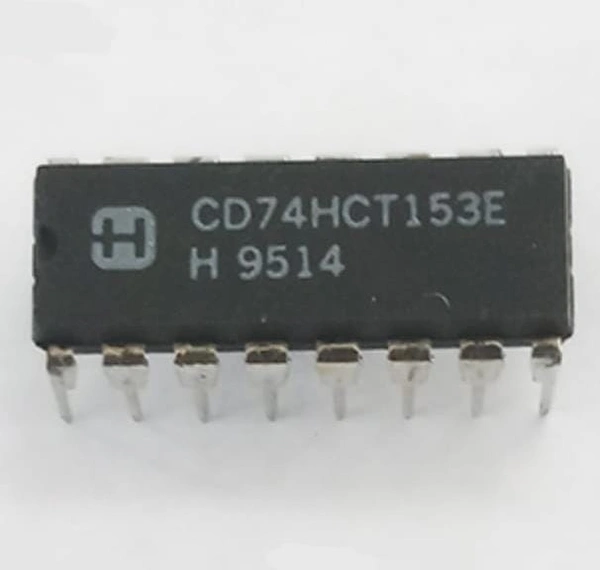

74153 IC Dual 1-of-4 Multiplexer Data Selector

Product Specifications

• IC number: 74153
• Type: DIP
• Pin number: 16
• IC Name: 1 of 4 data selector or data multiplexer
• Maximum Voltage supply: 5.25V
• Minimum Voltage supply: 4.75V
• Package Contains: tested and unused 1 piece of 74153 IC

74153 is a data multiplexer or data selector IC. It has inverters and drivers that supply fully complementary data selection to the AND-OR-NOT gates. It also has on-chip and binary decoding. It has 2 1 of 4 data multiplexer in one IC package. Separate data enables are available for each multiplexer.
