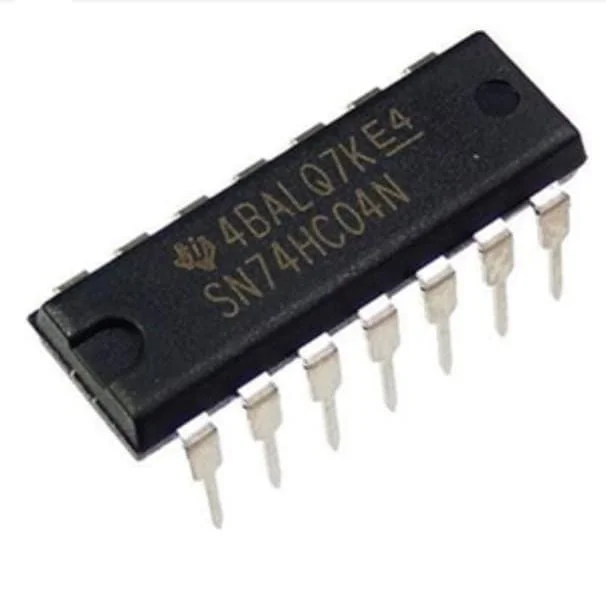

7404 IC - NOT gate Hex Inverter
₹ 29
₹ 39
26%
Delivery Options
Get delivery at your doorstep
Product Specifications
- Gate Type: NOT Gate
- Number of Gates count in one IC: 6 Gates
- Inputs Number per Gate: 1
- IC Type: DIP
- Number of pins: 14
- Power Consumption: Low
- Package Contains: Unused and checked 1 piece of 7404
7404 is a member of 74xxx series gate ICs and has the functionality of NOT get. It simply inverts the given signal and has 6 NOT gates. Another name of this IC is also hex inverter.
Truth Table of NOT Gate
INPUT
OUTPUT
A
NOT A
0
1
1
0
Specification
Large operating voltage
Its operating conditions are wide
Maximum Current that output can draw: 8mA
It has TTL outputs</li>
Its power consumption is low
Range of operating voltage: 4.75V to 5.5V
Maximum limit of voltage: 7V
