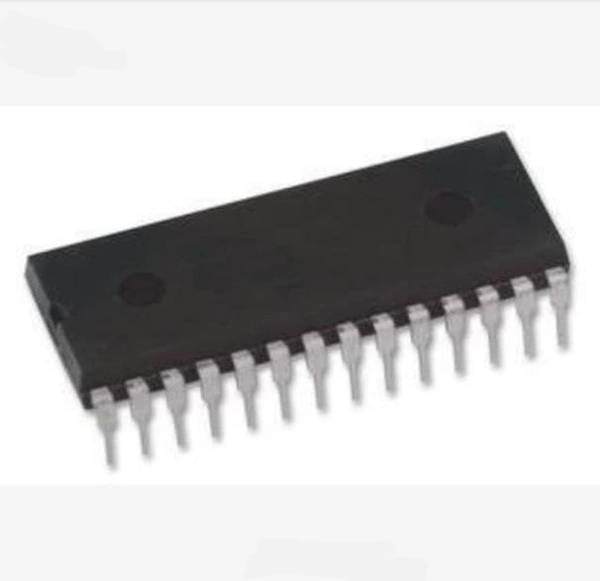

62256 32Kx8 bit CMOS SRAM (Static RAM) IC

Product Details

• Product: SRAM or Static RAM IC
• IC number: 62256 IC
• storage : 32K x 8 bit
• Number of pins: 28
• Pin type: through hole
• Package: Plastic DIP-28

62256 is a Static RAM or SRAM IC with CMOS technology. It has a memory of 32k- word x 8 bit with an easy memory expansion option provided by an active low chip enable the chip to enable an active-low output enable. The device features an automatic power-down feature reducing the power consumption by 99.9% when not in use.

Specification

Voltage supply: 4.5V to 5.5V (Typ. 5V)

Operating supply current: 15mA

Maximum input leakage current: 1�A

Maximum output leakage current: 1�A

Access time: 70ns

Total power dissipation: 1W

Temperature range: -55? to 125?
