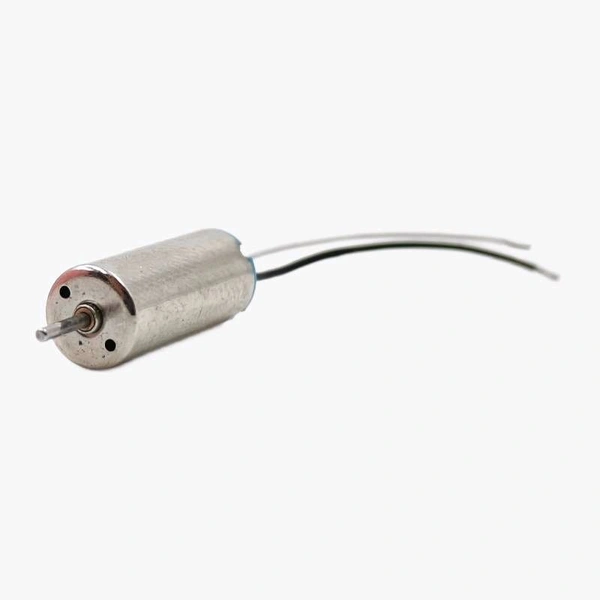

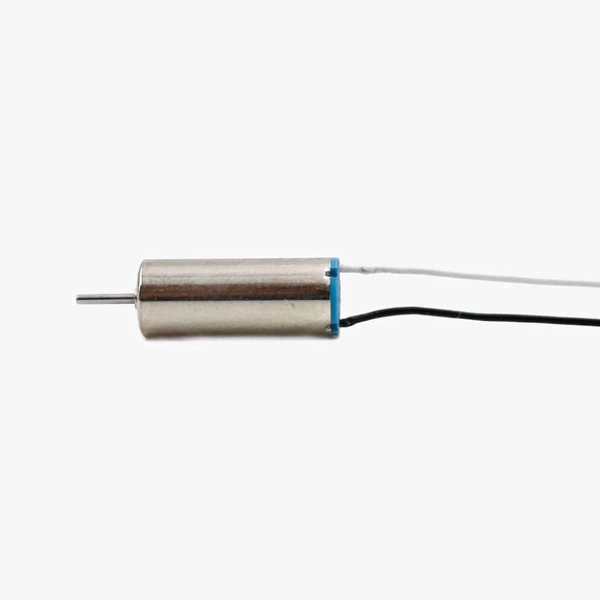

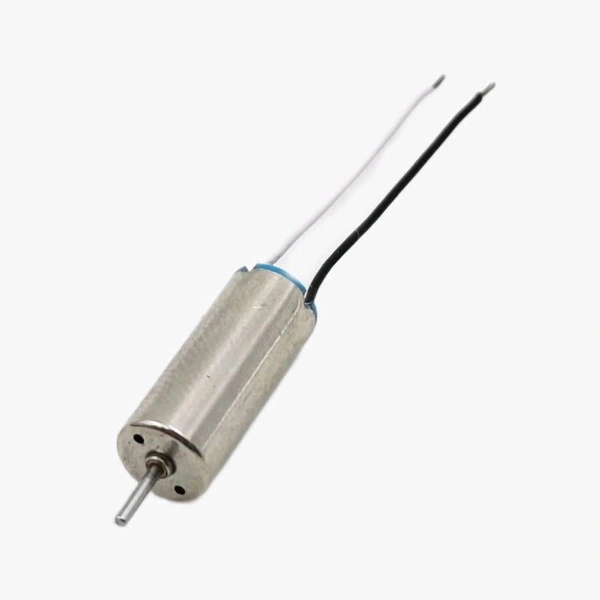

615 Magnetic Micro Coreless Drone Motor for Micro Quadcopters Q20 C1

Perfect for micro drone assemblies and compact robotics, this motor is compatible with 1S (3.7V) LiPo batteries and comes with a fan blade for efficient thrust. Its small form factor and high RPM output make it suitable for DIY flying models and hobby-grade robotics.

Features of 615 Magnetic Micro Coreless Drone Motor:

High-speed 48000 RPM motor for precise and stable flight

Lightweight and efficient for small-size quadcopters

Coreless structure minimizes friction and noise

3.7V operating voltage compatible with micro LiPo batteries

Ideal for micro drones, robotic kits, and model aircraft

Specifications of 615 Magnetic Micro Coreless Drone Motor:

Parameter Specification

Rated Speed (RPM) 48000

Rated Voltage (V) 3.7

Operating Current (A) 0.1

Operating Temperature (°C) -10 to 50

Shaft Diameter (mm) 1

Motor Color Silver

Motor Diameter (mm) 6

Motor Length (mm) 15

Motor Material Metal

Package Includes:

1 × 615 Magnetic Micro Coreless Motor
