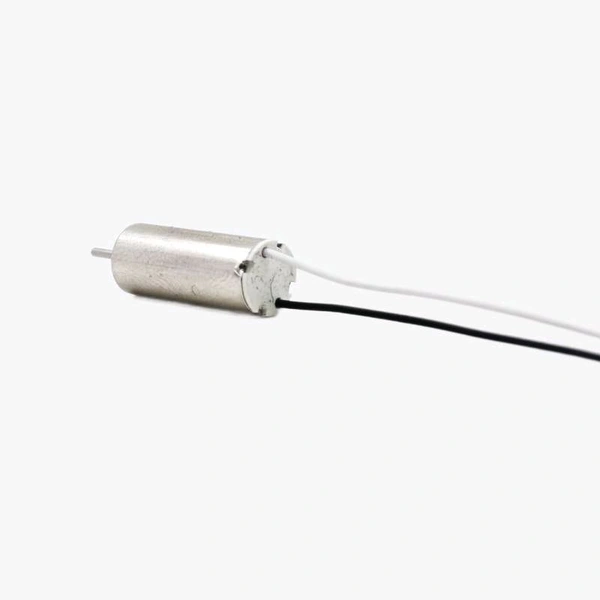

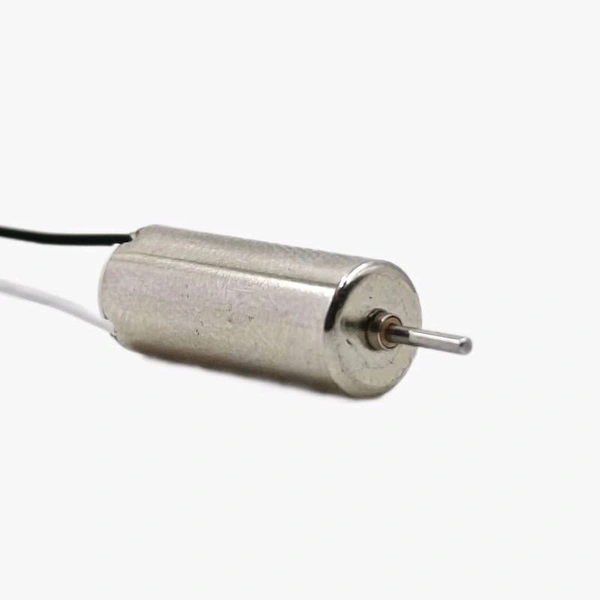

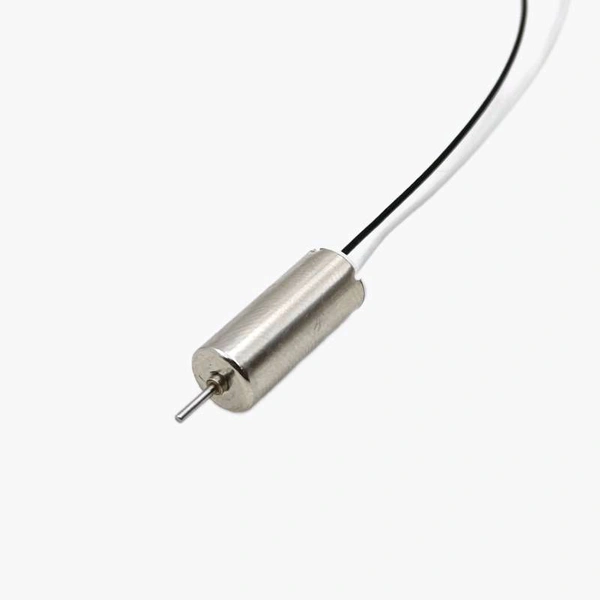

614 Magnetic Micro Coreless Drone Motor for Micro Quadcopters Q20 C1

Engineered for 3.7V operation, the motor delivers optimal efficiency and flight dynamics in small airframes. It features a durable metallic housing and is pre-equipped with a fan blade for plug-and-play usage.

Features of 614 Magnetic Micro Coreless Drone Motor:

45000 RPM speed for lightweight drone propulsion

Designed for 3.7V systems like 1S LiPo batteries

Compact and efficient for minimal air resistance

Coreless motor minimizes drag and heating

Ideal for ultra-light quadcopters and robotic builds

Specifications of 614 Magnetic Micro Coreless Drone Motor:

Parameter Specification

Rated Speed (RPM) 45000

Rated Voltage (V) 3.7

Operating Current (A) 0.1

Operating Temperature (°C) -10 to 50

Shaft Diameter (mm) 1

Motor Color Silver

Motor Diameter (mm) 6

Motor Length (mm) 14

Motor Material Metal



Package Includes:

1 × 614 Magnetic Micro Coreless Motor
