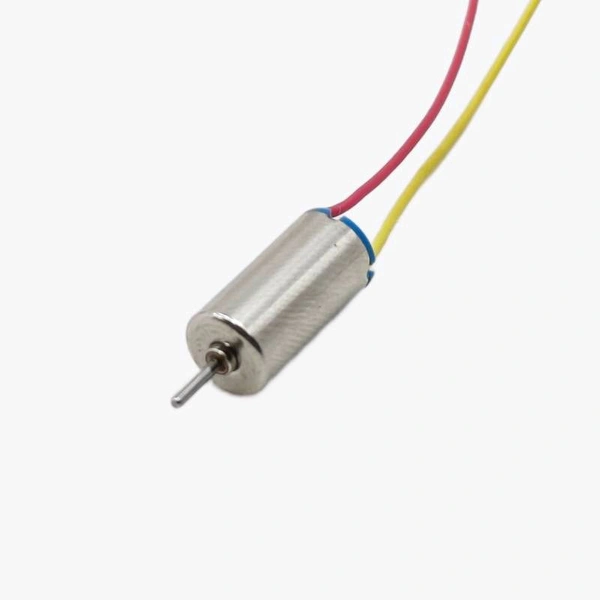

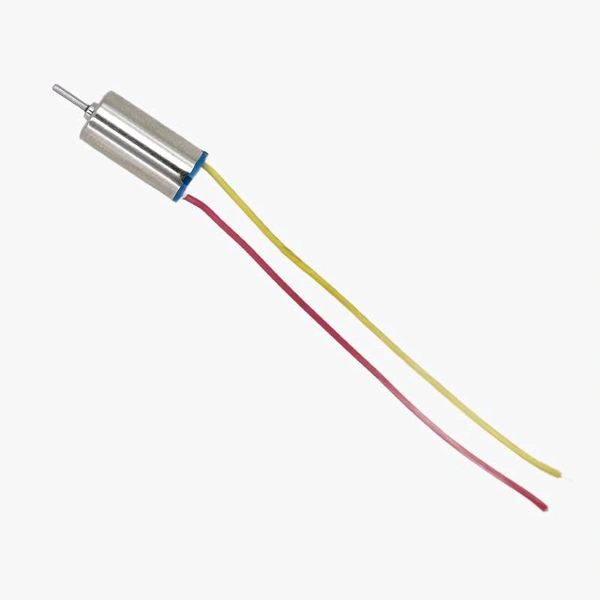

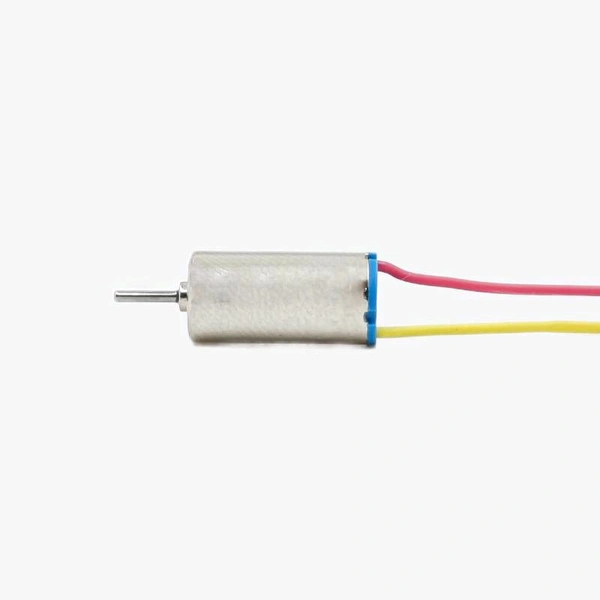

612 Magnetic Micro Coreless Drone Motor for Micro Quadcopters Q20 C1

Its efficient coreless architecture supports smooth, high-RPM operation with minimal resistance and noise, making it ideal for indoor flight or small-scale robotics projects.

Features of 612 Magnetic Micro Coreless Drone Motor:

Fast 42000 RPM performance for tiny flying toys and drones

Small form factor for limited-space integration

Suitable for 3.7V battery systems (1S LiPo)

Low current draw with excellent torque-speed balance

Great for micro flying vehicles and compact robotic platforms

Specifications of 612 Magnetic Micro Coreless Drone Motor:

Parameter Specification

Rated Speed (RPM) 42000

Rated Voltage (V) 3.7

Operating Current (A) 0.08

Operating Temperature (°C) -10 to 50

Shaft Diameter (mm) 1

Motor Color Silver

Motor Diameter (mm) 6

Motor Length (mm) 12

Motor Material Metal



Package Includes:

1 × 612 Magnetic Micro Coreless Motor
