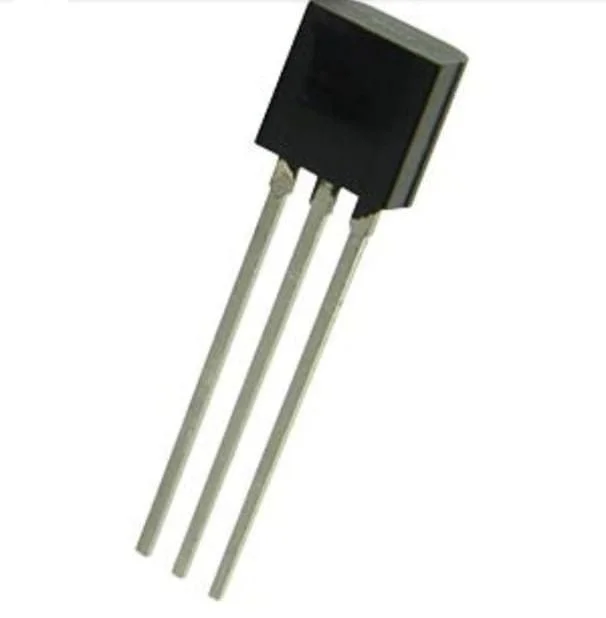

5pcs S9015 45V 100mA General Purpose PNP Transistor
₹ 39 / Piece
Delivery Options
Get delivery at your doorstep
Product Details
- Product: S9015 general purpose transistor
- Polarity: PNP
- Package: TO-92
- Number of pins: 3
- Mounting type through hole
- Package contains: 5 x S9015 45V 100mA General Purpose PNP Transistor
Features
High total power dissipation
High Hfe
Good linearity
Specification
Collector-base voltage: -50V
Collector-emitter voltage: -45V
Emitter-base voltage: -5V
Collector current: -100mA
Collector power dissipation: 450mW
DC current gain: 60Hfe to 600Hfe
Transition frequency: 150MHz
Operating temperature: -55? to +150?
Application
General purpose switching and amplification application
