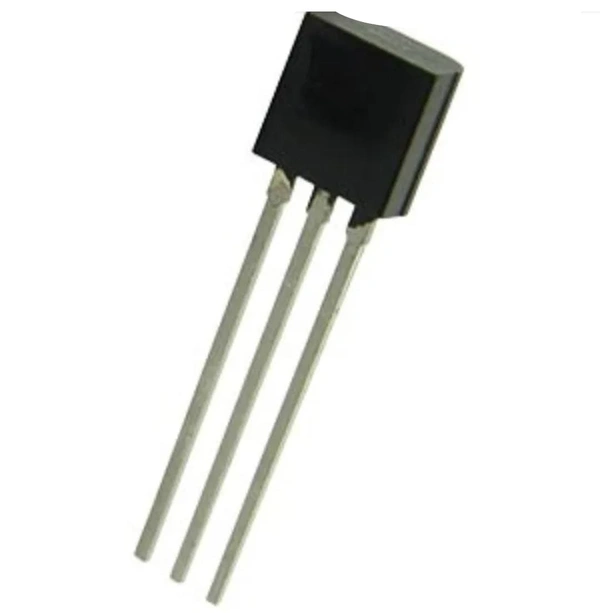

5pcs S9013 40V 500mA General Purpose NPN Transistor

Product Details

• Product: S9013 general purpose transistor
• Polarity: NPN
• Package: TO-92
• Number of pins: 3
• Mounting type through hole
• Package contains: 5 x S9013 40V 500mA General Purpose NPN Transistor

Features

High total power dissipation

High Hfe

Good linearity

Low level and low noise transistor

Specification

Collector-base voltage: 40V

Collector-emitter voltage: 20V

Emitter-base voltage: 5V

Collector current: 500mA

Collector power dissipation: 625mW

DC current gain: 64Hfe to 202Hfe

Transition frequency: 150MHz

Operating temperature: -55? to +150?

Application

General purpose switching and amplification application

Driving loads under 500mA

General purpose application
