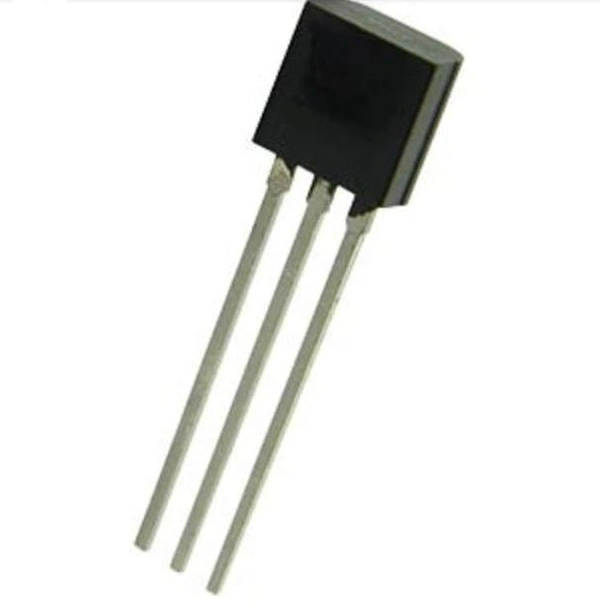

5pcs S8550 General Purpose PNP Transistor

Product Details

• Product: S8550 general purpose transistor
• Polarity: PNP
• Package: TO-92
• Number of pins: 3
• Mounting type through hole
• Package contains: 5 x S8550 General Purpose PNP Transistor

S8550 is a low voltage and high current transistor. It is a general-purpose PNP transistor designed for audio amplification and class B push-pull application

It is the best complementary of UTC S8050 Transistor

specification

Collector-Base voltage: -30V

Collector-Emitter voltage: -20V

Emitter-Base voltage: -5V

Collector current: -700mA

Continuous collector current: 500mA

Collector dissipation: 1W

DC current gain HFE: 80 to 300

Operating temperature: 65? to 150?

Pinout

Application

Class B push-pull applicatio

Audio amplification and switching application

Low signal application

Circuit with the high gain requirement

Package contains

1 x Original UTC S8550 PNP Transistor
