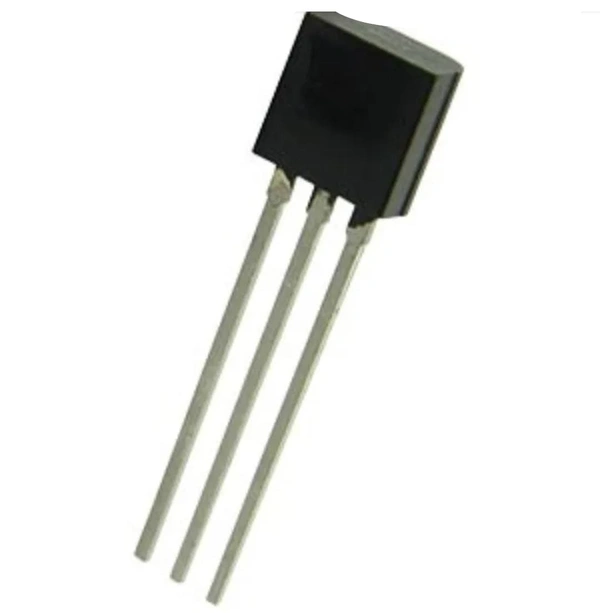

5pcs 2N5401 150V 600mA General Purpose PNP Transistor
₹ 24 / Piece
Delivery Options
Get delivery at your doorstep
Product Details
- Product: 2N5401 Transistor
- Polarity: PNP
- Number of pins: 3
- package: TO-92
- Mounting type: Through hole
- Package contains: 5 x 2N5401 General Purpose PNP Transistor
Specification
Collector-emitter voltage: 150V
Collector-base voltage: 160V
Emitter-base voltage: 5V
Continuous collector current: 600mA
DC current gain (hFE): 100
Total power dissipation: 625mW
Storage and operating temperature range: -55? to +150?
Application
General purpose switching and amplification
Telephony application
High voltage application
