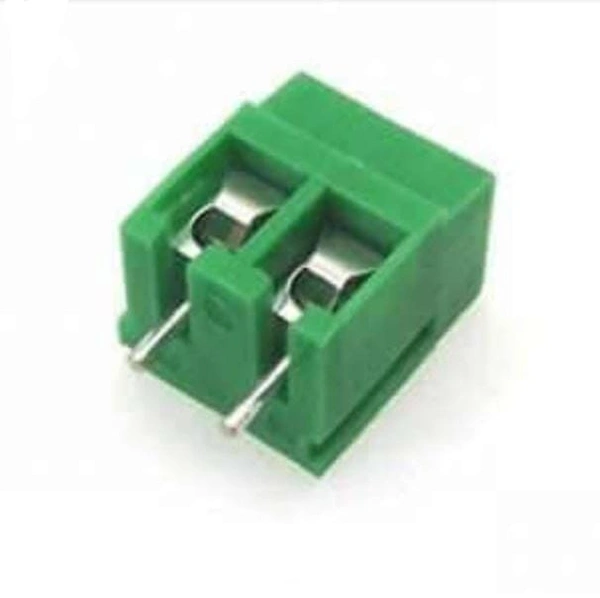

5pc 2-pole PCB Screw Terminal

• Product: ? 2 pole PCB Screw Terminal,
• 2 pole interlocking,
• 4-12 pole solid block end stack-able,
• Wire protector terminals,
• 5mm 2 cable entry,
• Anti-solder wicking terminal,
• Guided pin alignment

Specification

Rating: ? 16A/250V

Dielectric strength: ? ? 2kV

Insulation resistance: ? ? 5M?

Working temperature: ? -20�C to 125�C

Short period: ? 160�C

Moulding: ? UL94-V0 flame retardant Lexan

Pin/terminal: ? 5� tinned nickel plated brass

Wire protector: ? Tin plated phosphor bronze

Screw/torque: ? M2.5 steel 6� zinc colour passivated and tropicalised/0.4Nm

Recommended PCB hole: ? size �1.1mm
