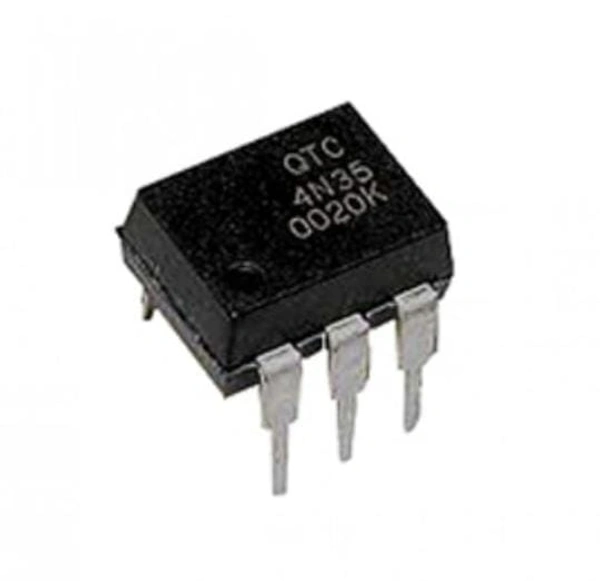

4N35 1-Channel 50 mA Phototransistor Output Optocoupler

4N35 is a 1-channel optocoupler with gallium arsenide LED and silicon NPN phototransistor.  The device comes in a 6 pin plastic DIP package.

Specification

Maximum reverse voltage: 6V

Forward voltage: 0.9V to 1.7V

Typical forward voltage: 1.3V

Isolation test voltage Vrms: 5000V

Reverse current: 0.1�A to 10�A

Collector emitter breakdown voltage @1 mA: 30V

Collector emitter breakdown voltage @100 �A: 7V

Collector base breakdown voltage: 70V       Collector emitter leakage current: 5nA to 50nA

Application

AC mains detection

Reed switch driving

Telephone ring detection

High-frequency noise rejection

Package contains                                                             1 x 4N35 optocoupler IC
