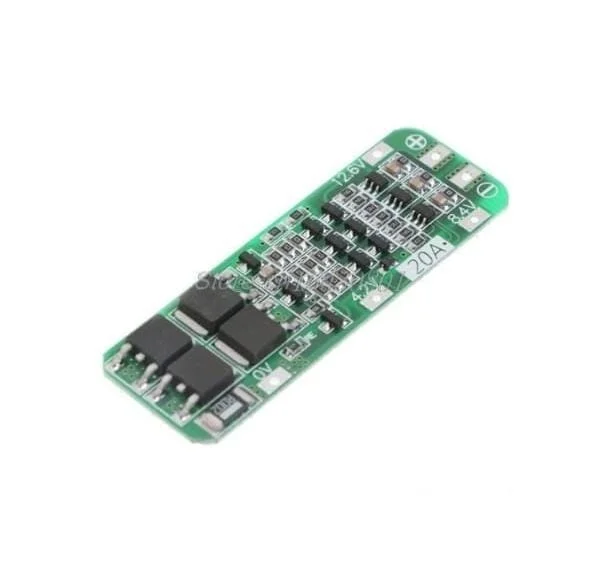

3S 20A 12.6V Li-ion Battery Charger Module BMS Protection PCB board

Product Details

• Product Type: BMS charger module
• Suitable for: 18650 Li-Ion battery
• Series: 3
• Version: 2.3
• Dimension: 50mm x 15.5mm x 3mm
• PCB color: Green

BMS stands for the battery management system. This is a 3 series  2.3 Version with 20A current and 12.6V voltage rating to charge 3 cells of Li-ion 18650 cell. This BMS module provides 6A continuous discharge current and 100mA balanced current.

                                                                        Specification

Charging voltage: 12.6V to 13V

Charging current (upper limit): 5A to 6A

Instantaneous current (upper limit): 8A

Continuous charge current (upper limit): 6A

Continuous discharge current (upper limit): 6A

Quiescent current: max 30�A

Operating temperature: -40? to +50?

Application

Battery pack

Consumer electronics product 12V voltage rating

Power supply

Power bank and charger
