3Pcs BC557 General Purpose PNP Amplifier - R387

Product Details

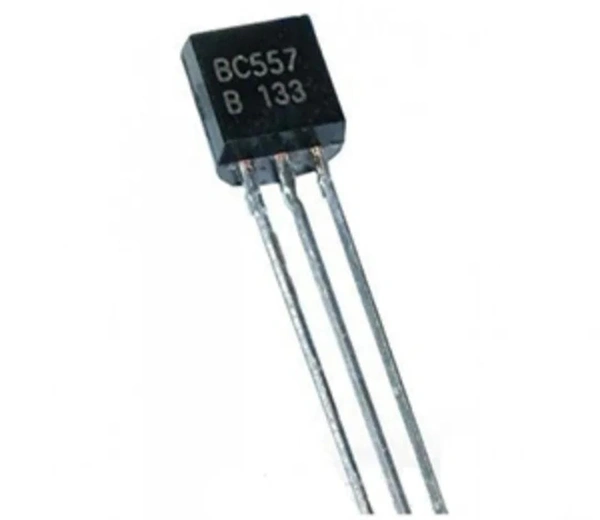

• Product: BC557 Transistor
• Polarity: PNP
• Number of pins: 3
• package: TO-92
• Mounting type: Through hole
• Package contains: 5 x BC557 General Purpose PNP Amplifier

Specification

Collector-emitter voltage: 45V

Collector-base voltage: 50V

Emitter-base voltage: 5V

Continuous collector current: 100mA

Base peak current: 200mA

Emitter peak current: 200mA

DC current gain (hFE): 300

Total power dissipation: 500mW

Storage and operating temperature range: -55? to +150?

Application

Driver stages of audio amplifiers

Low noise input stages of a tape recorder

Hi-Fi amplifiers

Signal processing circuits

LED Drivers Relay drivers etc

Darlington pair
