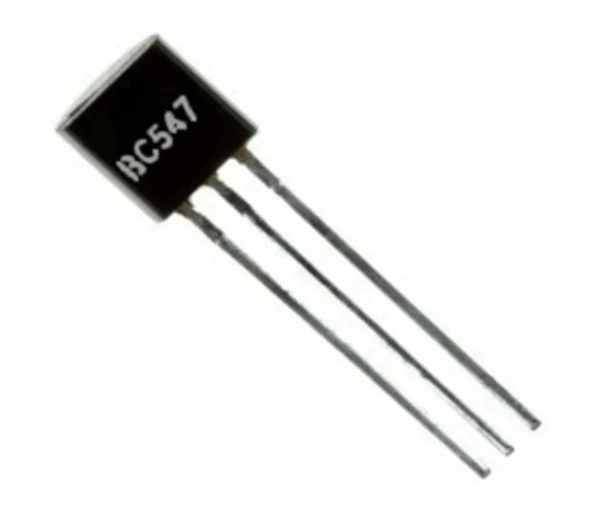

3pc BC547 NPN General Purpose Transistor

Product Details

• Product: BC547 Transistor
• Polarity: NPN
• Number of pins: 3
• package: TO-92
• Mounting type: Through hole
• Package contains: 5 x BC547 NPN General Purpose Transistor

BC547 is a general purpose NPN transistor designed for use as general purpose amplifiers and switches requiring collector currents to 300mA. The device has a current gain value of 110 to 800, which determines the amplification capacity of the transistor.

Specification

Collector-emitter voltage: 45V

Collector-base voltage: 50V

Emitter-base voltage: 6V

Continuous collector current: 500mA

Maximum DC current gain (hFE): 800

Total power dissipation: 625mW

Storage and operating temperature range: -55? to +150?

Application

Driver modules like relay driver, LED driver, etc

Amplifier modules like audio amplifier, signal amplifier, etc

General purpose switching application

Darlington pair
