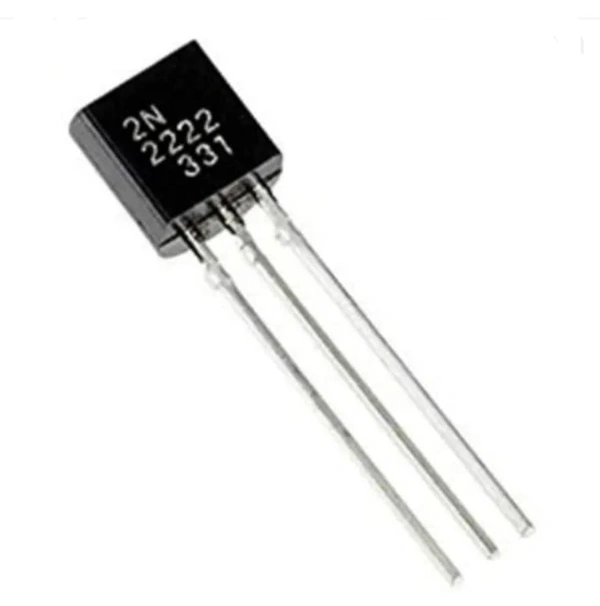

3pc 2N2222 NPN BJT Switching transistor - r53

Product details

• Ic number: 2N2222
• Transistor type: BJT NPN Transistor
• Number of pins: 3
• Pin type: through hole
• Package: TO-18 plastic
• Package contains: 5 x 2N2222 Transistor

2n2222 is a bipolar junction transistor with NPN polarity designed to use in general-purpose amplification and switching application. The transistor can handle collector current up to 800mA. Its key features are low power low to medium current medium voltage and moderate speed.

                                                                        Specification

Collector-base voltage: 60V

Collector-emitter voltage: 30V

Emitter-base voltage: 5V

Collector current: 800mA

Total power dissipation: 1.5W

Operating temperature: -65 to 150�C

 Dc current gain: 100 hFE

3pc 2N2222 NPN BJT Switching transistor - r53
