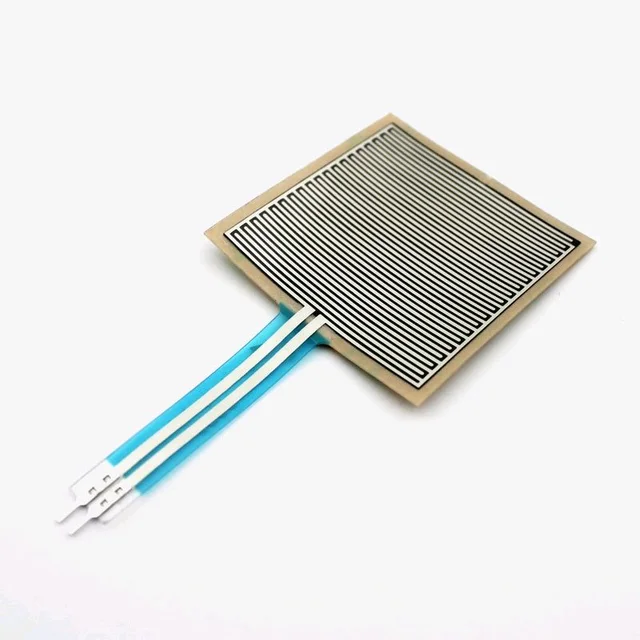

39.1mm - Square Shaped Force Sensor Q4 C15

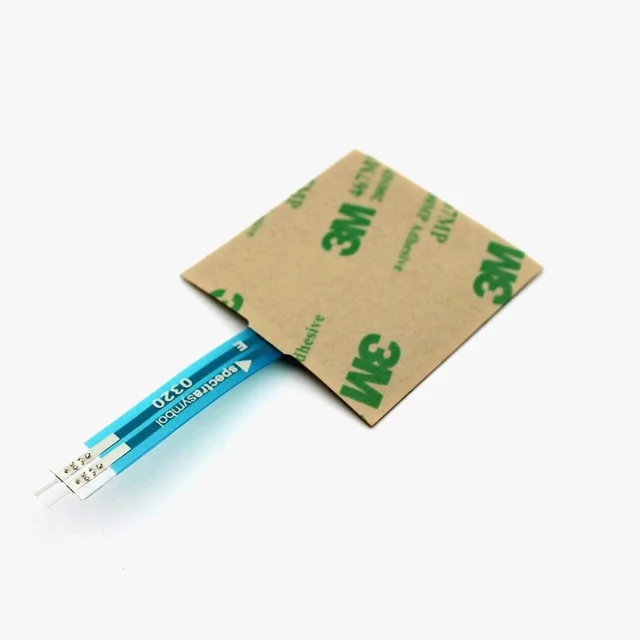

Two pins extend from the bottom of the sensor with 0.1" pitch making it bread board friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR.

Just Connect a resistor to form a voltage divider and measure the voltage at the junction to find the force applied. These sensors are simple to set up and great for sensing pressure, but they aren't incredibly accurate. Use them to sense if it's being squeezed, but you may not want to use it as a scale.



39.1mm Square Shaped Force Sensor Features:

Actuation Force: 0.1 Newtons

Force Sensitivity Range: 0.1 - 10.02 Newtons

Non-Actuated Resistance: 10M W

Device Rise Time: <3 microseconds

Temp Operating Range: 30 - +70 ºC

16MHz Clock Speed

32 KB Flash Memory



Package Includes:

1 x 39.1mm - Square Shaped Force Sensor
