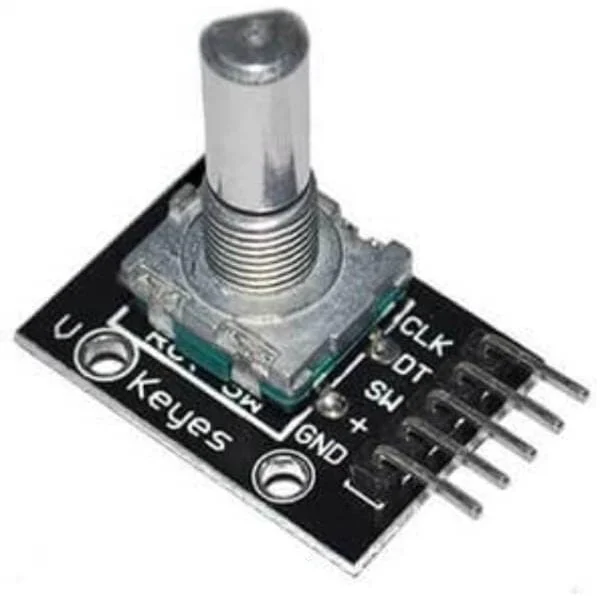

360 Degree Rotary Encoder Module Brick Sensor encoding Module for Arduino

Product specifications

• Module: M274
• Type: Incremental electromechanical
• Working voltage: 10 g
• Dimensions: 32 mm x 19 mm x 30 mm
• Material: PCB and Brass
• Working voltage: 0 to 5 v
• Cycles per rotations: 20
• Package contains: 1 piece of as described rotatory encoder

A rotary encoder has a shaft with unlimited 360-degree rotation which converts angular positions and motions of a shaft or axle to digital code. It is an incremental electromechanical component. The encoder module gives output about the motion of the shaft further this output is used to process in controller or processor to decode information like speed distance and positions.

Pin Description

Clock

DT

S

+

GND
