3 Pin PCB Mount Terminal Block (Screw type) - 5mm Pitch (Black) Q12 C5

3 Pin PCB Mount Terminal Block (Screw type) - 5mm Pitch (Black) Q12 C5

Name: 3 Pin PCB Mount Terminal Block (Screw type) - 5mm Pitch (Black) Q12 C5
SKU: SKU-6400
Price: 20 INR
Availability: InStock

₹ 20

₹ 25

20%

Delivery Options

Get delivery at your doorstep

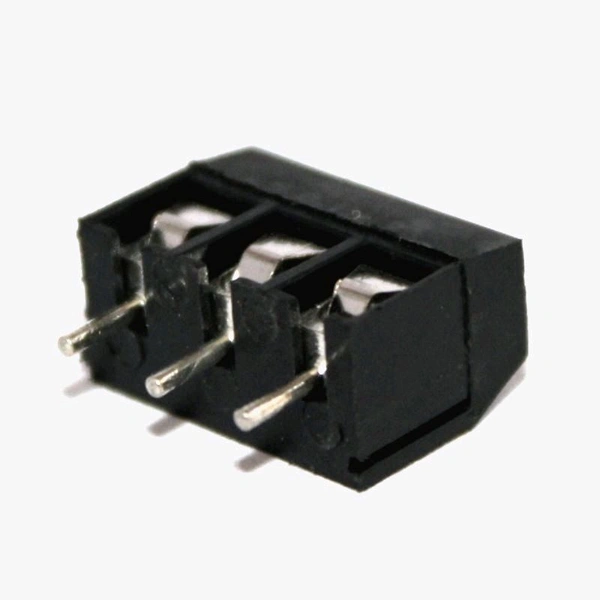

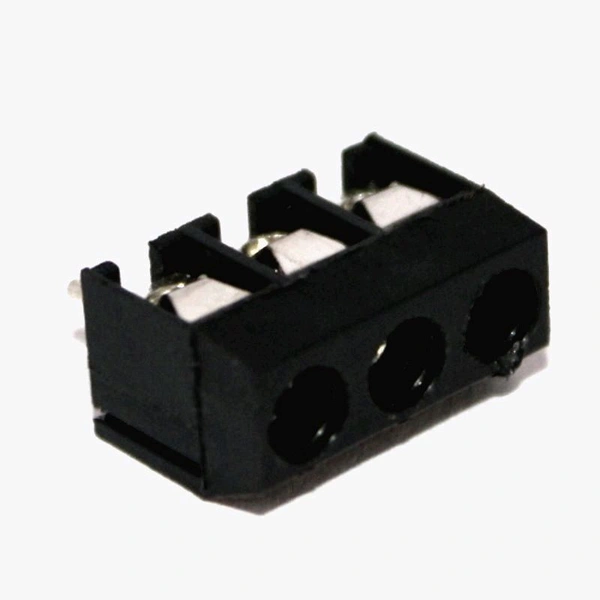

3 Pin 5mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts. However, the screw terminal blocks could provide 16A/300V nominal rating for the DC current. The Dielectric strength is more than 2kV.

Other than this, it could provide more than 1000 M ohm Insulation Resistance in 500 VDC. The connector is made using PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-V0 or V2) and has good insulation properties.

3-Pin Screw Terminal Features & Specifications:

Pin header : Tin plated brass.

Contacts : Nickel-plated brass.

Heat resistant.

Connector : PCB Terminal Block

Termination. : Screw

No. of Contacts : 3

Allowed Wire Size (AWG) : 24 ~ 16

Voltage(V). : 220V AC

Operating Current (A) : 16

Mounting Type : Through Hole

Pin Spacing (mm) : 5

Material : Metal and plastic

Length (mm) : 15

Width (mm) : 7.5

Height (mm) : 14

3-Pin Screw Terminal Applications:

Connecting Motors wire in the Board

AC or DC connection in the board

Quick disconnect related issue for handling of Boards

Industrial connections

Solderless Board to wire connectivity

3-Pin Screw Terminal Dimension and footprint:

3-Pin Screw Terminal

Example Projects on 3-Pin Screw Terminal:

How to install Terminal Blocks

Additional Resources:

Attaching Wire to PCB using Terminal Block

Package Includes:

1x 3-Pin Screw Terminal
