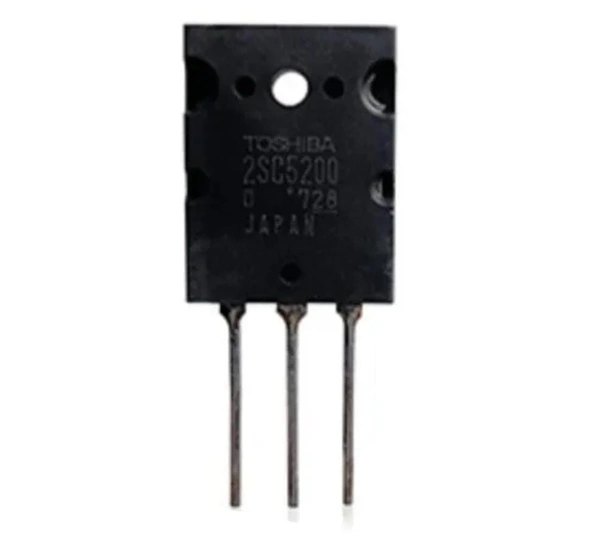

2SC5200 30A 230V NPN Epitaxial Power Amplifier Transistor Original Toshiba

2SC5200 is high power and a high current NPN transistor, manufactured by Toshiba. Because of high current gain, the transistor is used in high power audio circuits and AF amplifiers

Specification

Collector-Base voltage: 230V

Collector-Emitter voltage: 230V

 Emitter-Base voltage: 5V

Collector current: 15A

Base current: 1.5A

 Collector cutoff current: 5�A

lEmitter cutoff current: 5�A

DC current gain: 55 to 160

Collector power dissipation: 150W

                                                                            Application

AF (audio frequency) RF (Radiofrequency) Amplifier

Switching circuit with load up to 15A

Push-pull application

Instruction

Using continuously with heavy loads the device may decrease its performance significantly.

Use suitable heat sink

Check label

The device has a particular 3 digit lot number printed

It has a line under lot no which identifies the product label Ie RoHS Compatible or Pb free
