24C64 EEPROM IC Q8 C9

Name: 24C64 EEPROM IC Q8 C9
SKU: SKU-6108
Price: 27 INR
Availability: InStock

₹ 27

₹ 29

7%

Delivery Options

Get delivery at your doorstep

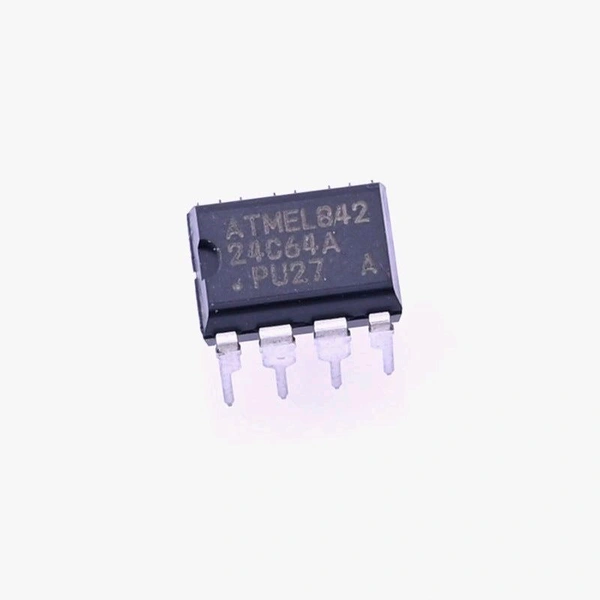

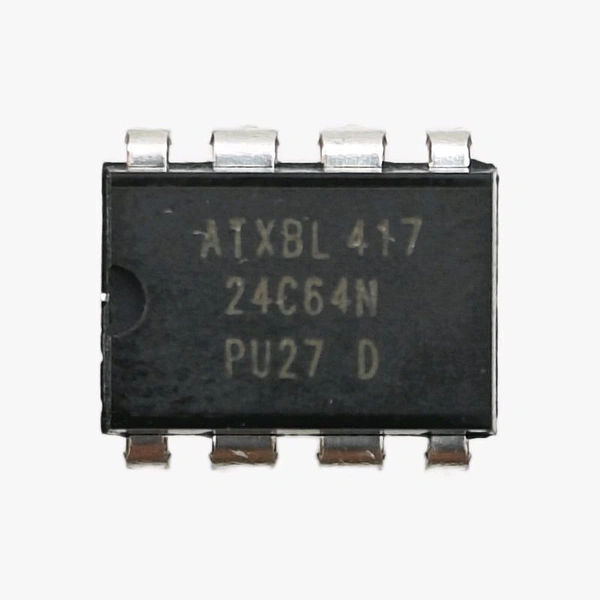

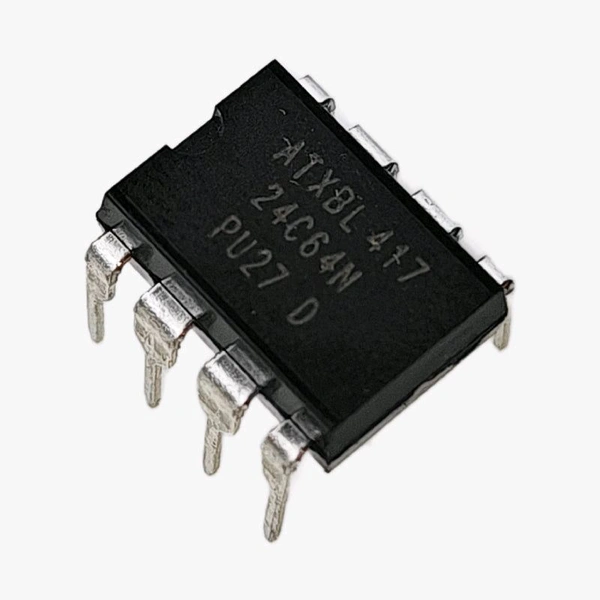

The 24C64 IC is a 64 Kbit serial electrically erasable PROM (EEPROM) organized as eight blocks of 1K, each having 8 bits (8K x 8 bits). It also offers page-write capabilities of up to 32 bytes of data with a data retention of more than 40 years. This I2C complaint IC permits a maximum of 8 devices to share a common 2 wire bus. It operates on voltage range between 2.5V to 5.5V at clock frequency of up to 400 KHz. It is highly optimized for low power, low voltage applications such as data acquisition or personal communication. The 24C64 EPROM IC is an 8 pin IC that can be accessorized with 8 Pin DIP IC Base/Socket.

PIN DESCRIPTION OF 24C64 EEPROM IC

24C64-EEPROM-IC

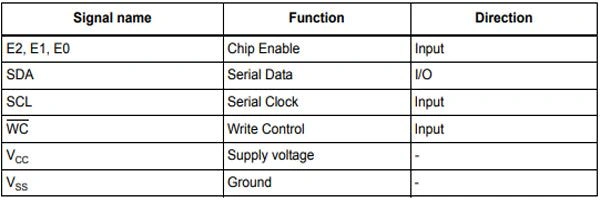

Signal Names

24C64 EEPROM IC

Features of 24C64 EEPROM IC

Memory array: 64 Kbit (8 Kbyte) of EEPROM, Page size: 32 byte

Compatible with all I2C bus modes: 1 MHz, 400 kHz ,100 kHz

Bidirectional Data Transfer Protocol

Single supply voltage: 2.5 V to 5.5 V over –40 °C / +85 °C ; 1.6 V to 5.5 V over 0 °C / +85 °C

Random and Sequential Read modes

Write protect of the whole memory array

Write: Byte Write within 5ms and Page Write within 5ms

More than 40 years of data retention

Highly reliable

Package Contents

1× 24C64 EEPROM IC
