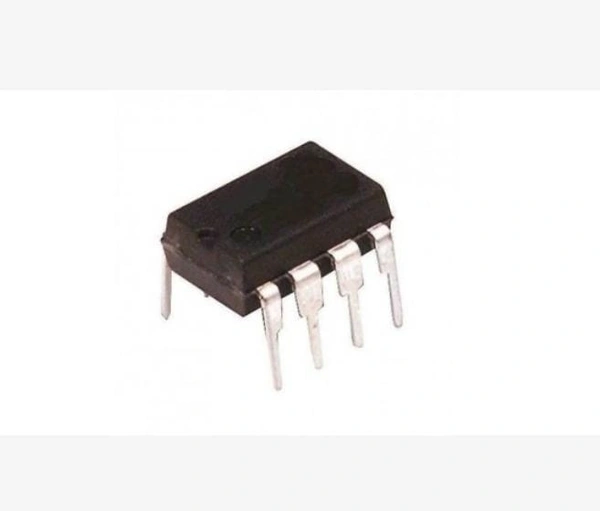

24C256 256 Kbit Serial I2C Bus EEPROM Memory IC

Product Details

• Product type: EEPROM memory IC
• IC number: 24LC256
• Number of pins: 8
• Mounting type: through hole
• Package type: PDIP-8
• Package contains: 1 x 24LC256 256 Kbit Serial I2C Bus EEPROM Memory IC

Features

Single voltage supply operation from 1.7V to 5.5V

Can be cascaded up to 4 similar devices</li>

64-byte page write mode (partial page write allowed)

2 wire protocol (IIC/I2C) interface

Schmitt trigger inputs for noise suppression

Output slope control to eliminate ground bounce

Write protocol pin for hardware and software data protection

Compatible with 1MHz (5V) 400kHz (2.7V 2.5V) and 100kHz (1.8V)

Maximum 5 ms page write time

More than 1M read/write cycles

Maximum 1�A standby current

Specification

Voltage supply range: 1.7v to 5.5V

Maximum voltage supply: 6V

Memory size: 256Kbyte

Memory interface type: IIC or I2C

Clock frequency: 400kHz

Operating temperature range: -40? to 125?

Application

Storage device

Used to increase flash memory of MCUs

Radio devices

Data logging and analytics
