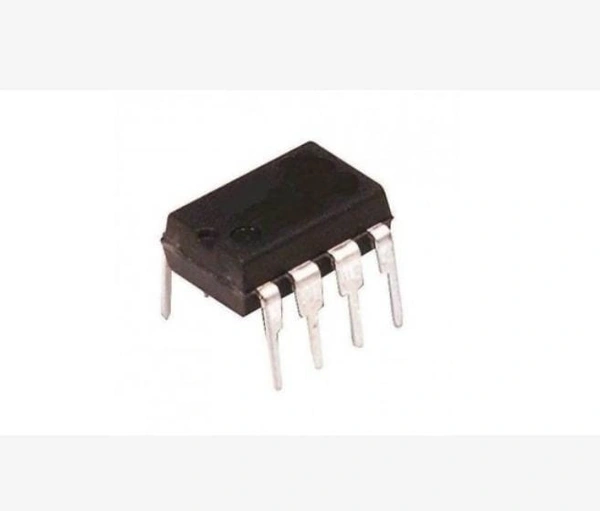

24C16 16 Kbit Serial I2C Bus EEPROM Memory IC
₹ 29 / Piece
Delivery Options
Get delivery at your doorstep
Product Details
- Product type: EEPROM memory IC
- IC number: 24LC16
- Number of pins: 8
- Mounting type: through hole
- Package type: PDIP-8
- Package contains: 1 x 24LC16 16 Kbit Serial I2C Bus EEPROM Memory IC
Features
Single voltage supply operation from 2.2V to 5.5V
16-byte page buffer
2 wire protocol (IIC/I2C) interface
Schmitt trigger inputs for noise suppression
Output slope control to eliminate ground bounce
Write protocol pin for hardware and software data protection
100kHz and 400kHz clock frequency compatibility
Maximum 5 ms page write time
Typical 3ms write cycle time with auto-erase function
Hardware write-protect
Self-timed erased/write cycle
More than 1M read/write cycles
Maximum 1�A standby current
Specification
Voltage supply range: 1.7v to 5.5V
Maximum voltage supply: 6V
Memory size: 16Kbyte
Memory interface type: IIC or I2C
Clock frequency: 400kHz
Pin Description
Operating temperature range: -40? to 125?
Application
Storage device
Used to increase flash memory of MCUs
Radio devices
Data logging and analytic
