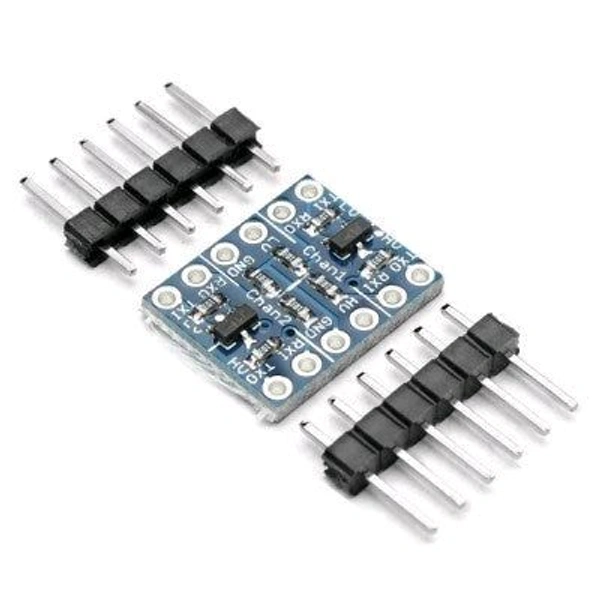

2 Channel Logic Level Converter (I2C, UART, 5V-3.3V) C6 B4

The 2 Channel Logic Level Converter is a small device that safely steps down 5V signals to 3.3V and steps up 3.3V to 5V. This level converter also works with 2.8V and 1.8V devices. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side. Two inputs and two outputs are provided for each side. This logic level converter is compatible with Arduino, Raspberry Pi and STM32.

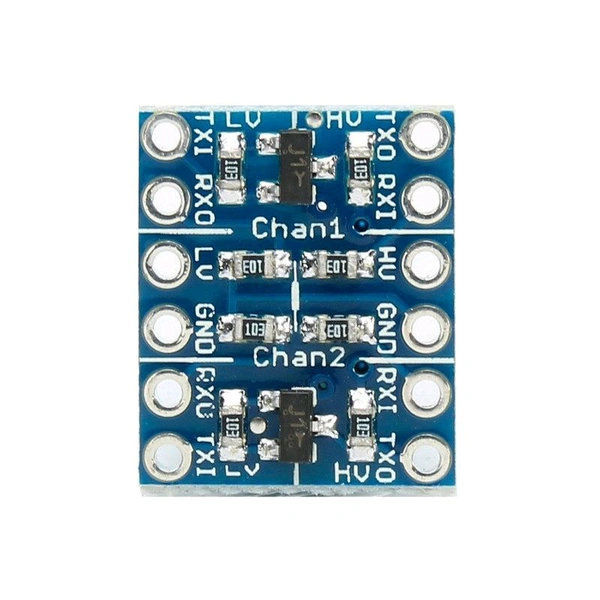

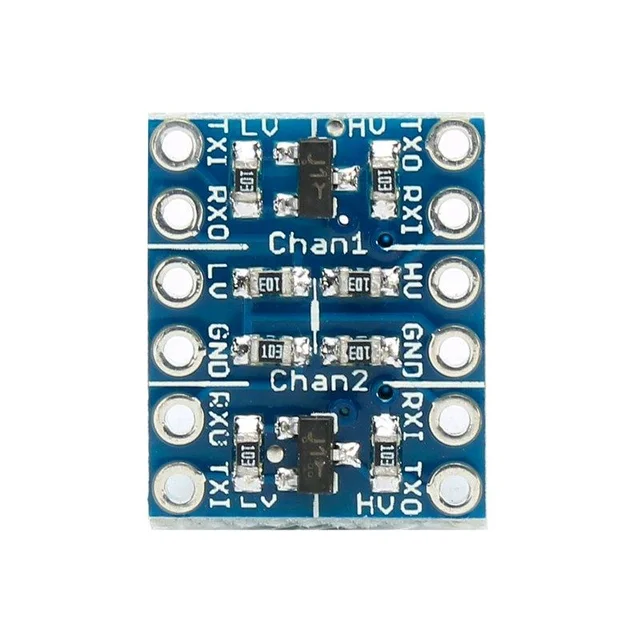

Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side. The level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the HV' pin, low voltage (3.3V for example) to LV', and ground from the system to the GND' pin.

Application:

TTL Logic Level Converter

Bidirectional Logic Level Conversion

Package Includes:

1 x 2 Channel Logic Level Converter

Specifications:

High Voltage 5V

Low Voltage 3.3V

No. of Channels 2

Dimensions 15 x 15 x 2mm

Weight 2g
