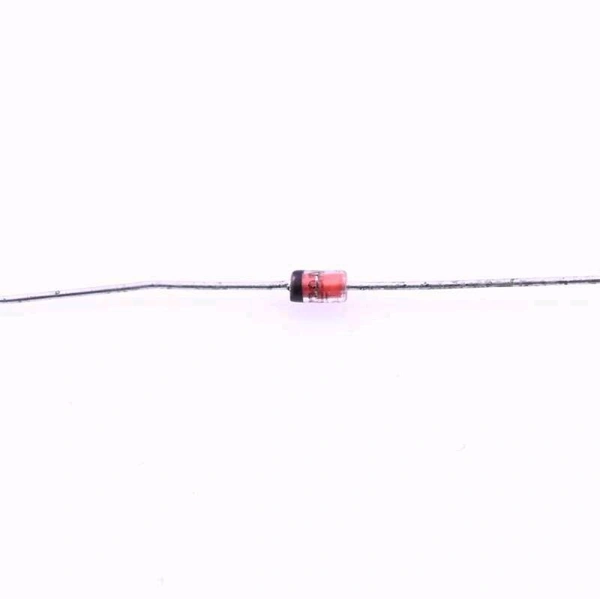

1N4740A 10V - Zener Diode Q1 C6

Name: 1N4740A 10V - Zener Diode Q1 C6
SKU: SKU-6560
Price: 5 INR
Availability: InStock

₹ 5

₹ 6

17%

Delivery Options

Get delivery at your doorstep

This 1N4740A Zener diode is another form of diode which comes in Through-hole package. Zener diode will mostly be used in a protection circuit or in a crude voltage regulator circuit. Either way, it very important to remember that a Zener diode should always be used along with a Zener resistor. The 1N4740A 10V Zener Diode has a nominal voltage of 10V and like other types of Zener diodes, it can be used as a reference element in voltage regulation, and it can also be used in switching applications and clipper circuits.

1N4728A

Equivalent to the 1N4740A 10V zener diode, other zener diodes including the 10V zener, 9.1 zener, 8.2 zener, 7.5 zener and 6.8 zener can be found from the website.

Features of the 1N4740A 10V Zener Diode

Package type : Through hole

Nominal Voltage : 10V

Tolerance : ± 5%

Power Dissipation : 1.0 Watt

Storage Temperature : -65 to 175 degree C

Weight : 0.35g

Case type : Do-41 Glass Case

High reliability

Very sharp reverse characteristics.

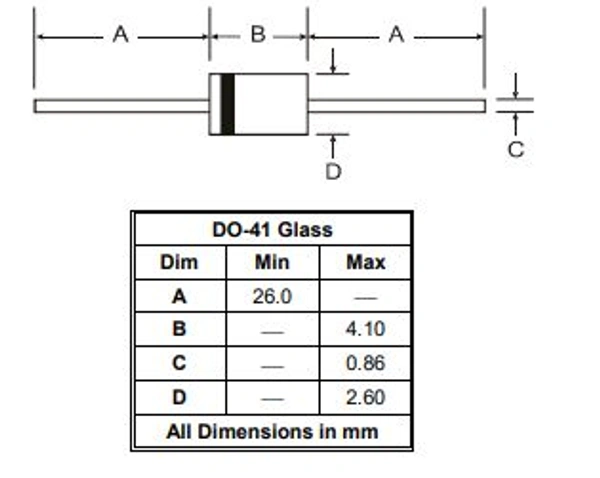

Mechanical Drawing of 1N4740A 10V

Mechanical Drawing of 1N4728A

Additional Resources

1N4740A 10V Zener Diode datasheet

How to use Zener Diode

Package Includes

1 x 1N4740A 10V Zener Diode
